SFP光模块

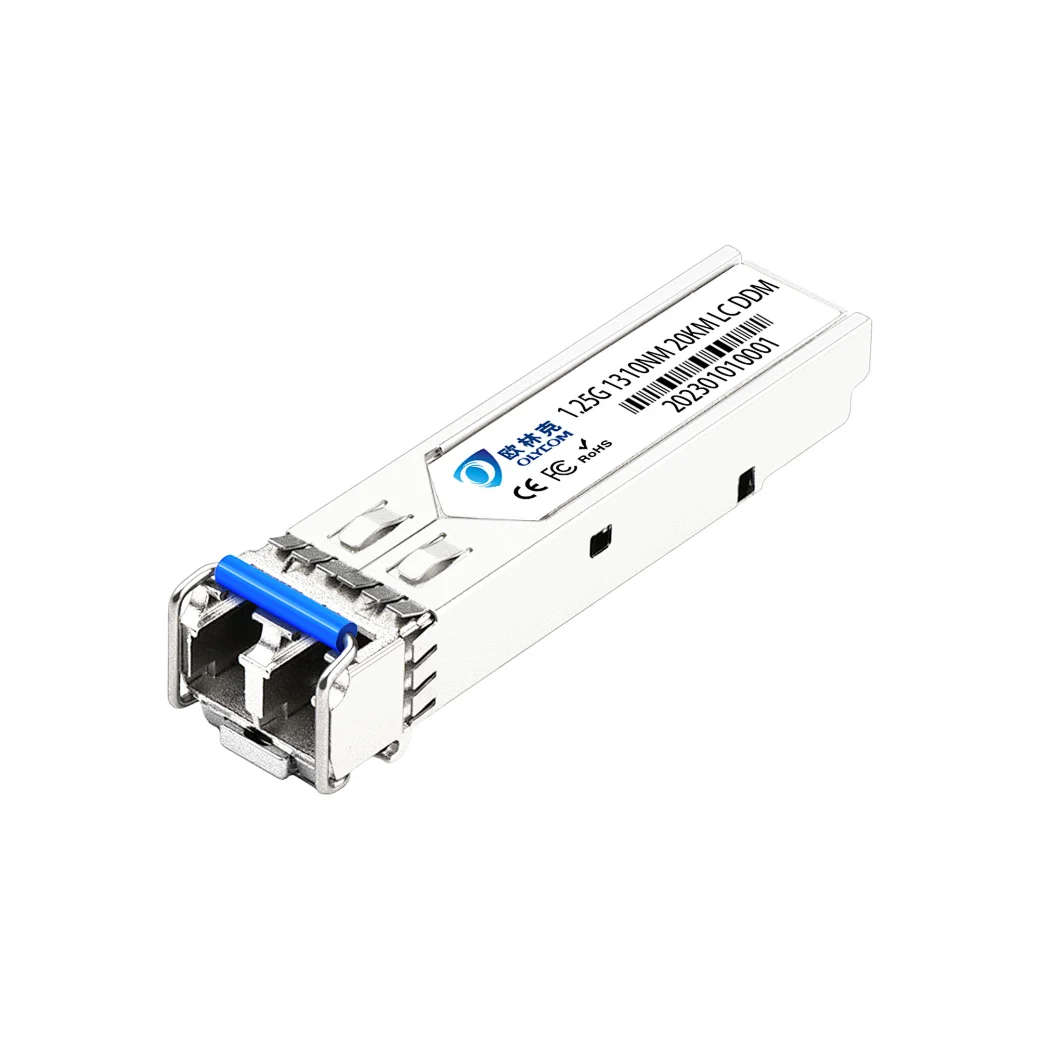

1.25G Dual Fiber 20KM 1310nm LC DDM

OSPL1G20D
OLYCOM’s OSPL1G20D Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 20km application.
Quantity
Contact Now

1. Up to 1.25Gb/s Data Links

2. Hot-Pluggable

3. Duplex LC connector

4. Up to 20km on 9/125μm SMF

5. 1310nm FP laser transmitter

6. Single +3.3V Power Supply

7. Monitoring Interface Compliant with SFF-8472

8. Maximum Power<1W

9. Industrial/Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

10. RoHS compliant and Lead Free
