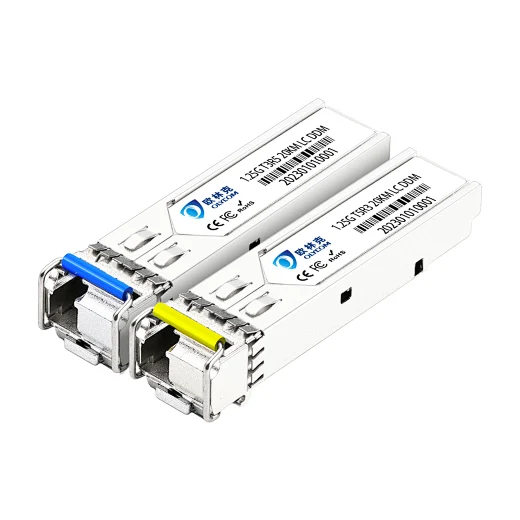

1.25G Single Fiber 1310nm/1550nm 20KM LC DDM

OSBL1G20D-35/53

OLYCOM’s OSBL1G20D-35 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 20km application.

Quantity

Contact Now

1. Up to 1.25Gb/s Data Links

2. Hot-Pluggable

3. Single LC connector

4. Up to 20 km on 9/125μm SMF

5. 1310nm FP laser transmitter

6. 1550nm PIN photo-detector

7. Single +3.3V Power Supply

8. Monitoring Interface Compliant with SFF-8472

9. Maximum Power<1W

10. Industrial/Extended/ Commercial operating temperature range: -40°C to 85°C/-5°Cto 85°C/-0°C to 70°C Version available

11. RoHS compliant and Lead Free

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	λc	1270	1310	1600	nm
Spectral Width(RMS)	σRMS			4	nm
Optical Output Power	Pout	-9		-3	dBm	1
Extinction Ratio	ER	9			dB
Optical Rise/Fall Time	tr / tf			260	ps	2
Relative Intensity Noise	RIN			-120	dB/Hz
Total Jitter Contribution	TX Δ TJ			0.284	UI	3
Eye Mask for Optical Output	Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength	λc	1530	1550	1570	nm
Receiver Overload	Pol	-3			dBm	4
RX Sensitivity	Sen			-24	dBm	4
RX_LOS Assert	LOS A	-40			dBm
RX_LOS De-assert	LOS D			-25	dBm
RX_LOS Hysteresis	LOS H	0.5			dB
General Specifications:
Data Rate	BR		1.25		Gb/s
Bit Error Rate	BER			10-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s	LMAX		20		km
Total System Budget	LB	14			dB
