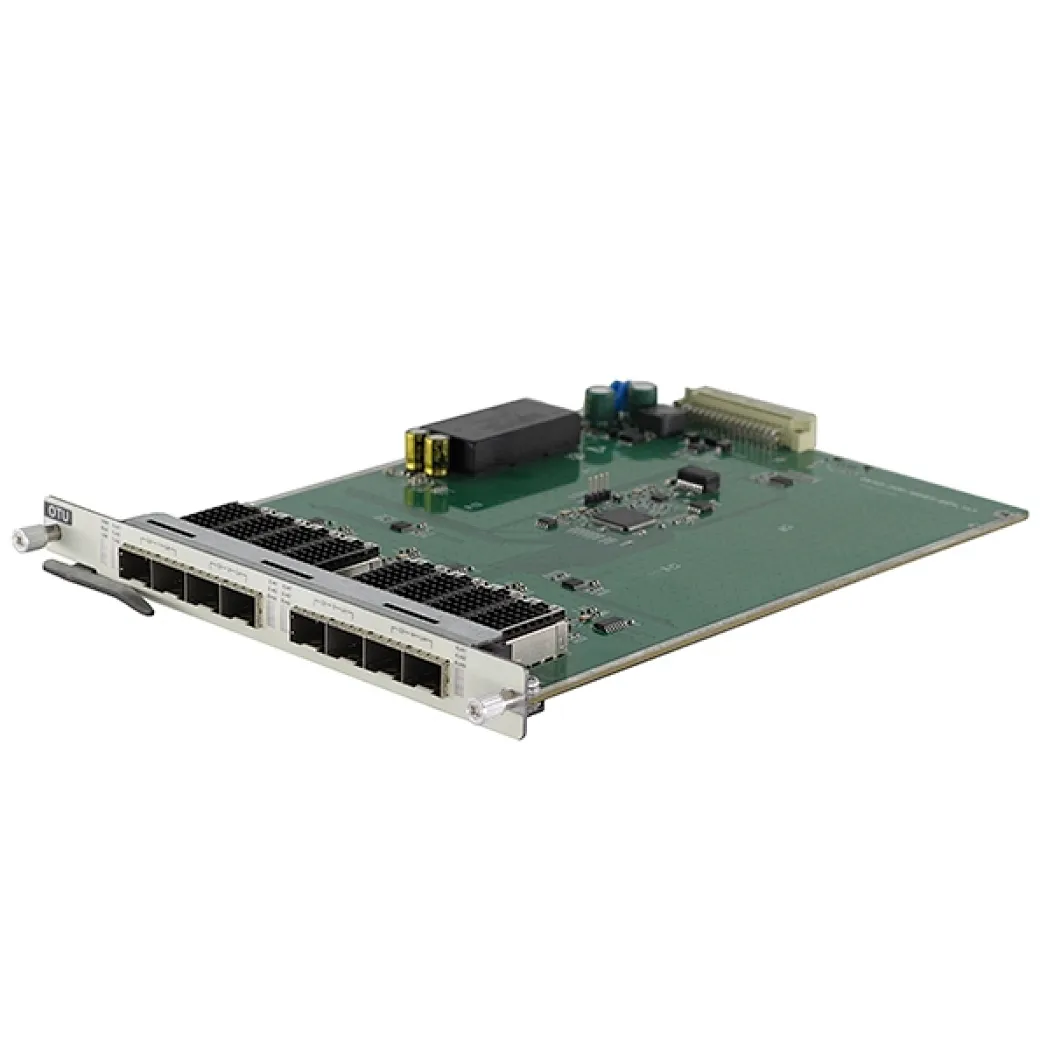

SFP+ Multi-Rate OTU Transponder Card
OLY8000-10G
SFP+ Multi-Rate Quad Transponder has 8 SFP+ slots，The device provides a flexible transmission of various protocols, such as 1G/10G Ethernet, SDH STM16/STM64, OTU1/OTU1e/OTU2/OTU2e, Fiber Channel 1/2/4/8/10, CPRI, etc.The SFP+ transponder supports multi-rate functionality with optical data rates from 1Gbps up to 10Gbps;The wide range of optical infrastructure solutions includes media conversion,signal repeating, lambda conversion.
The main field of application is CWDM and DWDM networks. As an intelligent transponder module,SFP+ Transponder converts a transparent data channel to a corresponding CWDM/DWDM wavelength. By means of the implemented 3R functionality (re-amplification, re-shaping, re-timing) for signal processing, the module is also suited for the use as a repeater,The SFP+ transponder models fit OLK8000 series CH04、CH08、CH20chassis.
The main field of application is CWDM and DWDM networks. As an intelligent transponder module,SFP+ Transponder converts a transparent data channel to a corresponding CWDM/DWDM wavelength. By means of the implemented 3R functionality (re-amplification, re-shaping, re-timing) for signal processing, the module is also suited for the use as a repeater,The SFP+ transponder models fit OLK8000 series CH04、CH08、CH20chassis.
Quantity
1. 3R signal regeneration:
Retransmission
Reshaping
Retiming
2. Multi-rate supports:1Gbps ~ 10Gbps
3.Supports Loopback Test
4. Supports LFP
5.Flexible transmission of various protocols
6. Fibre Channel 1/2/4/8 /10Gbps
CPRI;2/3/4/5/6/7
1G/10G Ethernet
SDH STM-4/16/64
Applications
Telecom
Data center
5G Network
Long Haul Network
