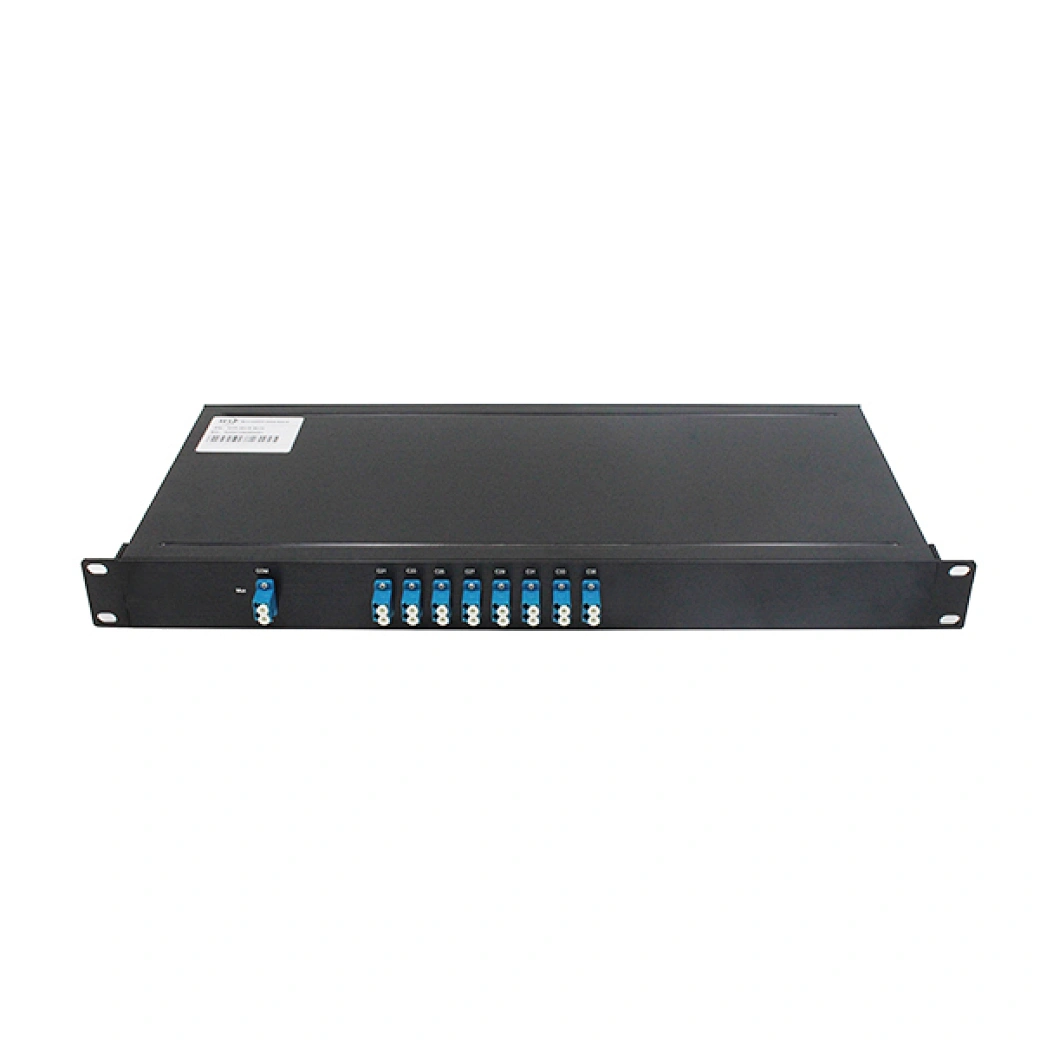

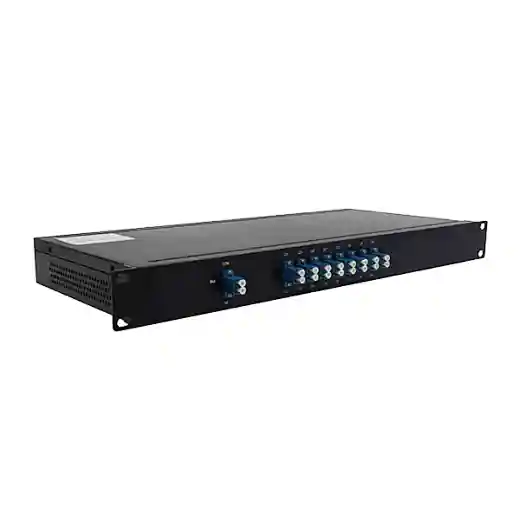

16CH DWDM MUX Single Fiber 19"1U Rack

OLY6000-16CH

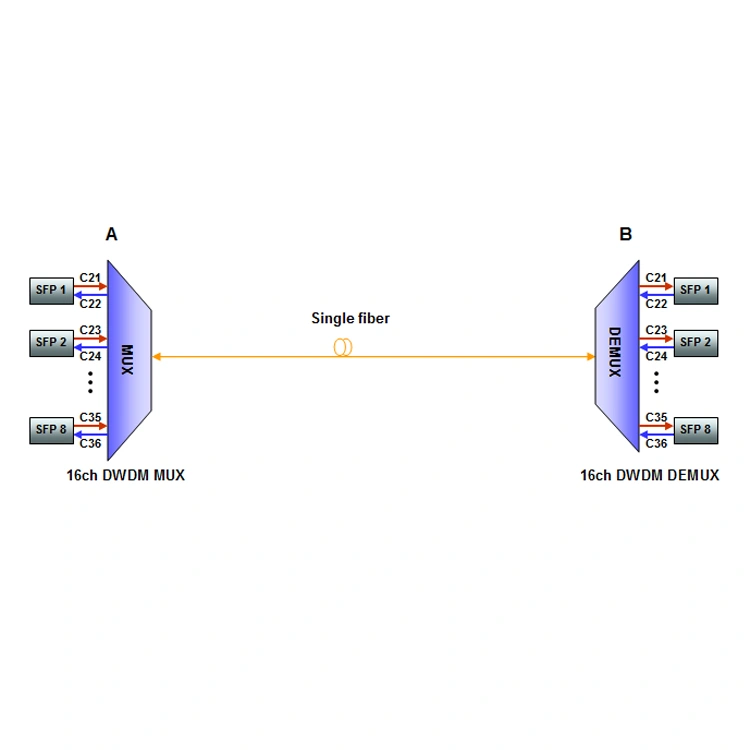

The OLK6000-16CH is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. The OLK6000-16CH may be used as a standalone tabletop device or mounted in 1-unit space of a 19" data rack. It can achieve bi-directional 8CH data multiplex and de-multiplex. The complete passive solution requires no power cabling and no configuration; it is a true plug and play solution.

Quantity

Contact Now

1. 16 Channel 100 GHz DWDM combined Multiplexer or Demultiplexer (MUX or DEMUX)

2. Standalone compact form factor - 1U, Installation friendly

3. Plug and play, requires no configuration

4. Green product: completely passive, needs no power and no cooling

5. Low Low insertion loss, insertion loss<=4dB,

6. High channel isolation:adjacent isolation >=25dB; non-adjacent isolation >=45dB

7. Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from Htfuture and other third parties

8. High reliability, MTBF of 100 years

9. Designed for Telcordia / Bellcore GR-120

Applications

DWDM transmission

Metro and long-haul networks

Point-to-point DWDM fiber optimization

Linear add/drop DWDM fiber optimization

Parameter		4 Channel		8 Channel		16 Channel
		MUX	DEMUX	MUX	DEMUX	MUX	DEMUX
Channel Wavelength (nm)		ITU 100GHz Grid
Center wavelength Accuracy(nm)		±0.1
Channel Spacing (nm)		0.8nm(100GHz)
Channel Passband(@-0.5dB bandwidth (nm)		>0.25
Insertion Loss (dB)		<=1.8		<=3.0		<=4
Channel Uniformity (dB)		<=0.6		<=1.0		<=1.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40
Inertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1		<0.1	<0.15
Polarization Mode Dispersion		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Maximum Power Handling (mW)		300
