10/100Mbps Industrial PoE Ethernet Switch (6 UTP)

IM-PS066FE

IM-PS066FE series is the 10/100 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Quantity

Contact Now

1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.

2. IEEE 802.3af/at power on to 1 ~ 6 RJ45 ports as one 30W POE network switch

3. 6 x 10/100Mbps Auto-sensing RJ45 ports

4. The total power of the POE+ Dinrail switch can reach 180W

5. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment

6. Support Auto MDI/MDIX

7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant

9. A store-and-forward switching mechanism

10. Operating environment temperature:-40 ° ~85 ° c

Product Name	10/100Mbps Industrial POE Ethernet Switch ( 6TP)
Model No.	IM-PS066FE
Port	6 x10/100M UTP RJ45（Support MDI/MDIX auto-sensing） 6 x10/100M UTP RJ45 WITH PoE
Switching features	Transmission mode：storage and forward System bandwidth：40Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, network
Power supply	POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~6) (802.3at standards required special instructions)
Environment	Working temperature：-40°～ 85°C Storage temperature：-40°～ 85°C Working humidity：10%～90%，non-condensing Storage humidity：10%～95%，non-condensing
Industry Standards	EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8 Traffic Control：NEMA-TS2 Vibration：IEC 60068-2-6 Freefall：IEC 60068-2-32 Shock：IEC 60068-2-27 Rail Traffic：EN 50121-4
Safety	CE Mark ,commercial CE/LVD EN60950

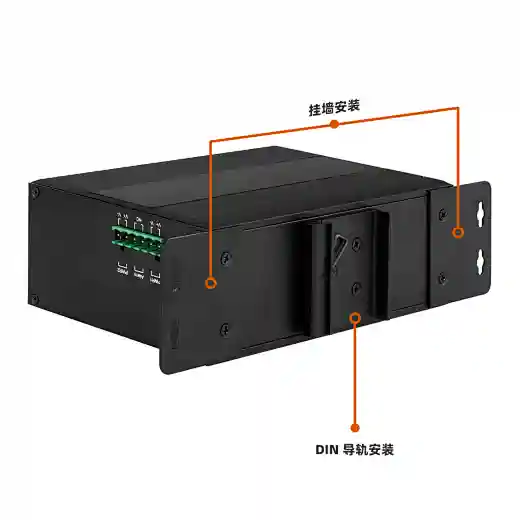

Mechanical information	Shell：Corrugated metal shell Safety class：IP44 Dimension：158 x 114.8 x 60mm Mounting method：Din-rail mounting
Warranty	Replacement within 1 year; 5 years repairing
