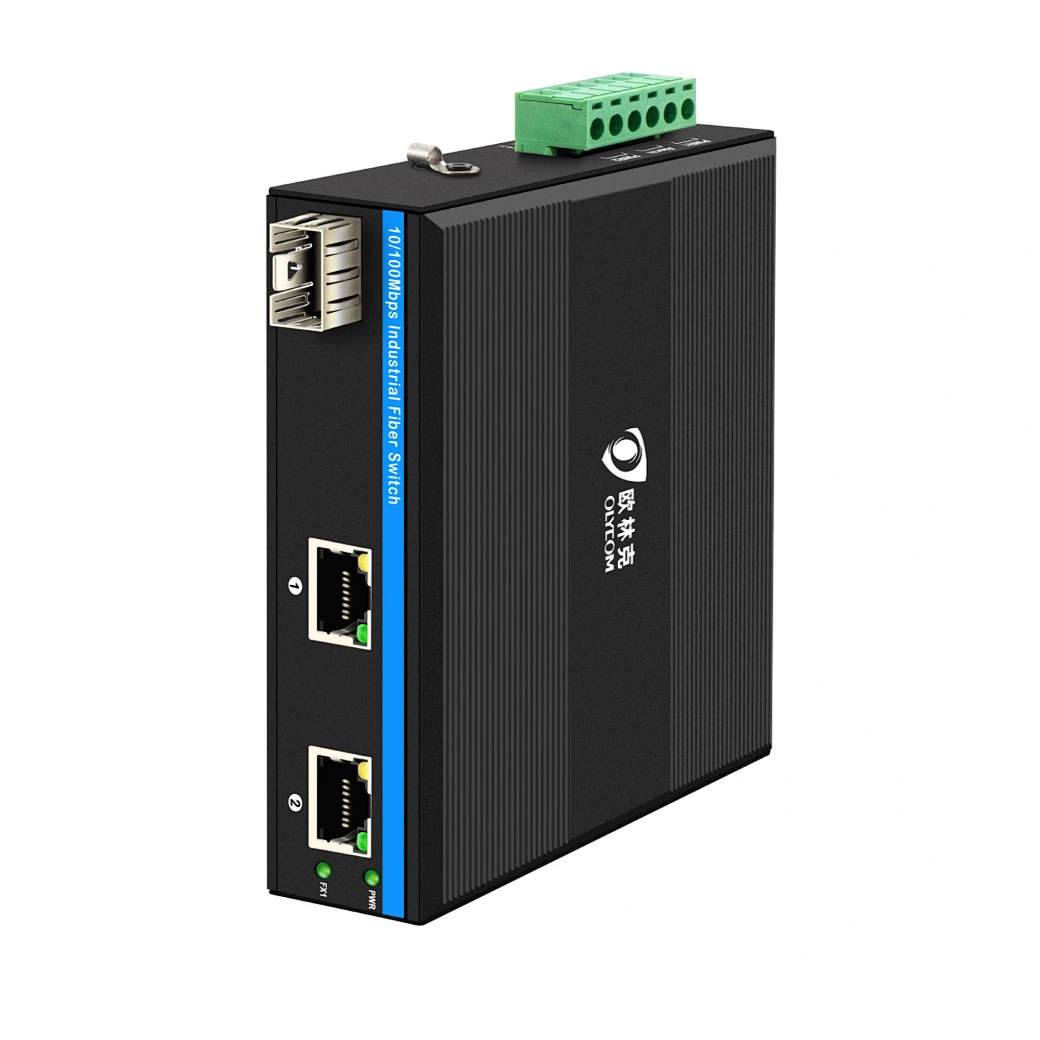

10/100Mbps Industrial Fiber Switch （1 Fiber to 2 UTP)

IM-FS120FE

IM-FS120FE series is the 10/100 Mbps industrial fiber switch, operating temperature-40 ℃ to + 75 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Quantity

Contact Now

1. 2 x 10/100Mbps Auto-sensing RJ45 ports

2. 1 x 100Mbps fixed SFP fiber port

3. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment

4. Support Auto MDI/MDIX

5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

6. IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant

7. A store-and-forward switching mechanism

8. Operating environment temperature:-40 ° ~75 ° c

Product Name	10/100Mbps Industrial Ethernet Switch (1F+ 2TP)
Model No.	IM-FS120FE
Port	2 x10/100M UTP RJ45（Support MDI/MDIX auto-sensing） 1x100M SFP fiber port
Switching features	Transmission mode：storage and forward System bandwidth：40Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, network
Power supply	Input voltage：DC 12-52V No-load power：5W Reverse connection：support
Environment	Working temperature：-40°～ 75°C Storage temperature：-40°～ 85°C Working humidity：10%～90%，non-condensing Storage humidity：10%～95%，non-condensing
Industry Standards	EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8 Traffic Control：NEMA-TS2 Vibration：IEC 60068-2-6 Freefall：IEC 60068-2-32 Shock：IEC 60068-2-27 Rail Traffic：EN 50121-4
Safety	CE Mark ,commercial CE/LVD EN60950

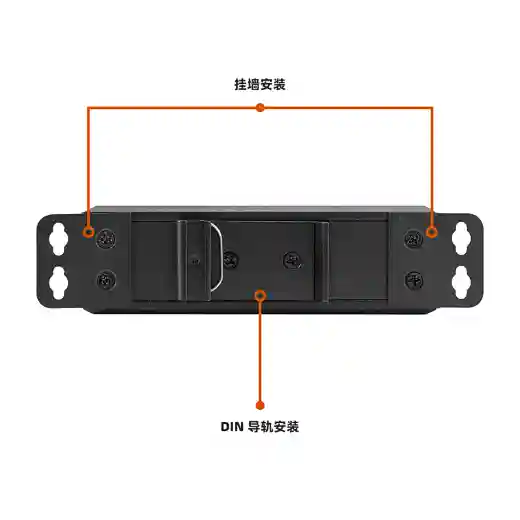

Mechanical information	Shell：Corrugated metal shell Safety class：IP40 Dimension：158 x 114.8 x 60mm Mounting method：Din-rail mounting
Warranty	Replacement within 1 year; 5 years repairing
