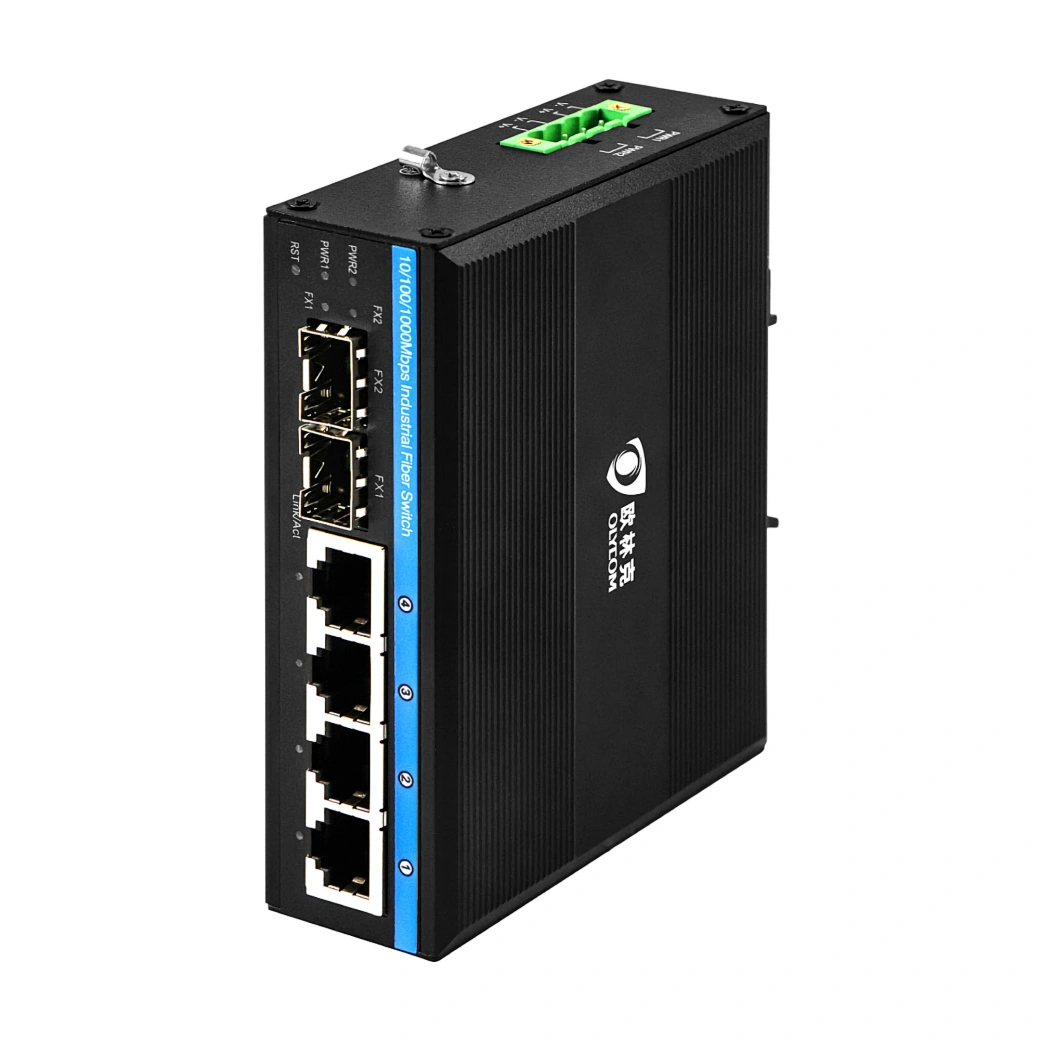

Managed 10/100/1000Mbps Industrial Fiber Switch ( 2 Fiber to 4UTP)

IM-FS240GW

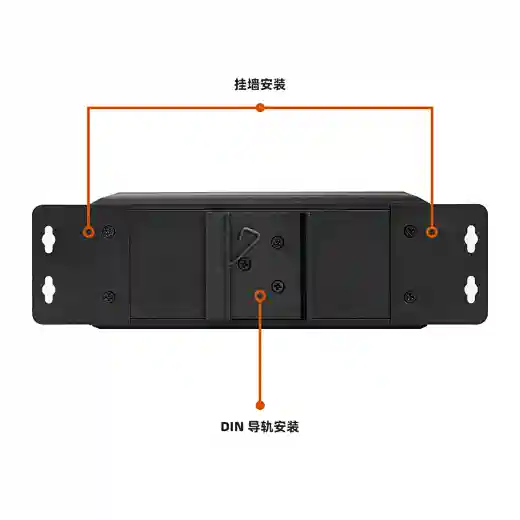

IM-FS240GW series is the 10/100/1000Mbps managed industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Quantity
Contact Now
1. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
2. 2 x 1000Mbps SFP fiber port
3. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
4. Support Auto MDI/MDIX
5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
7. A store-and-forward switching mechanism
8. Operating environment temperature:-40 ° ~85 ° c
9. Support cable diagnosis and can locate the fault point
10. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
11. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
12. Support Qos, transport classification  Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
13. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
14. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
15. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
16. Support IGMP agent report, MLD snooping
17. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
18. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
19. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
20. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
21. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
22. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
