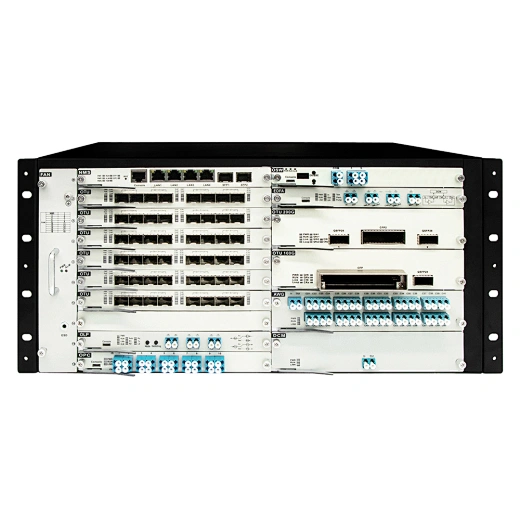

19" 5U OTN DWDM 100G 200G Optical Transmission Network Solutions
Applications
Telecom
Data center
5G Network
Long Haul Network
Managed 10/100/1000Mbps Industrial Fiber Switch (4 Fiber to 24UTP),24Port Managed Switch,1U Rack Fiber Switch,Gigabit Ethernet Switch L2+,24Port Managed Switch Manufacturer - OLYCOM,24Port Managed Switch, 1U Rack Fiber Switch, Gigabit Ethernet Switch L2+,Focus on 24Port Managed Switch, 1U Rack Fiber Switch and Gigabit Ethernet Switch L2+, OLYCOM Provide OEM/ODM services and have professional R&D team. Contact us now!,10/100Mbps Industrial Fiber Switch(1F + 4UTP),4Port Fiber Switch 120W,Industrial Fiber Switch,10/100M Switch,4Port Fiber Switch 120W Manufacturer - OLYCOM,4Port Fiber Switch 120W, Industrial Fiber Switch, 10/100M Switch,Focus on 4Port Fiber Switch 120W, Industrial Fiber Switch and 10/100M Switch, OLYCOM Provide OEM/ODM services and have professional R&D team. Contact us now!
Applications
Telecom
Data center
5G Network
Long Haul Network
Function |
Note |
|||
Product model |
OSP3800-1 |
OSP3800-2 |
OSP3800-4 |
OSP3800-5 |
Equipment Size (W × D× H, mm) |
1U: (back-power supply) 442×350×44mm |
2U: (back-power supply) 442×350×88mm |
4U: (back-power supply) 442×350×176mm |
5U: (back-power supply) 442×350×220mm |
Service Slot |
4 slots |
8 slots |
16 slots |
20 slots |
Power Consumption |
120W (Max) |
300 W (Max) |
600 W (Max) |
750W (Max) |
Max Channel Number |
CWDM: 18 wavelength, DWDM: 96 wavelength(50GHz) |
|||
Single Channel Max Rate |
200Gbit/s |
|||
Line Side Rate |
1.25Gbit/s, 2.5Gbit/s, 8Gbit/s, 10Gbit/s, 16Gbit/s, 25Gbit/s, 40Gbit/s, 200Gbit/s |
|||
Support Service |
STM-1/4/16/64/256、OC-3/12/48/192/768 OTU-1/2/3/4 FE/GE/10GE/25GE/40GE/100GE FC 1G/2G/4G/8G/16G/32G |
|||
Clock Features |
Support IEEE 1588V2 |
|||
Network Topology |
Point to point, chain type, star type, ring type |
|||
Network Level Protection |
Optical channel 1+1 protection, optical multiplex 1+1 protection, optical line 1+1 protection |
|||
Equipment Level Protection |
Power supply backup |
|||
Network Management |
SNMP, Web, CLI, Telnet |
|||
Installation |
"19"and 23" cabinets, ETSI 300mm/600mm cabinets Wireless outdoor base station cabinet, FTTX outdoor cabinet, hanging wall |
|||
Working Temperature Range |
-10℃~60℃ |
|||
Working Humidity Range |
5~95% no condensation |
|||
Storage Temperature Range |
-40℃~85℃ |
|||
Heat Dissipation |
Fan cooling |
|||
Power Supply Mode |
AC: 90 ~ 260V or DC: -36 ~ -72 V |
NMS management card |
100G QSFP28 to CFP transponder |
2xQSFP28 to CFP2 200G Muxponder |
100G Muxponder: QSFP28 ↔ 4xSFP28 |
40G&100G OEO: 6*QSFP28 |
SFP28 25G Quad transponder |
SFP+ Multi-Rate Quad transponder |
Redundant Multi-Rate Dual transponder |
EDFA Optical Amplifiers |
Bidi EDFA Optical Amplifiers |
16ch DWDM MUX/DEMUX |
40ch DWDM MUX/DEMUX(AAWG) |
OLP Optical Line Protector |
DWDM Passive Optical Add/Drop Multiplexers |
DCM card |
