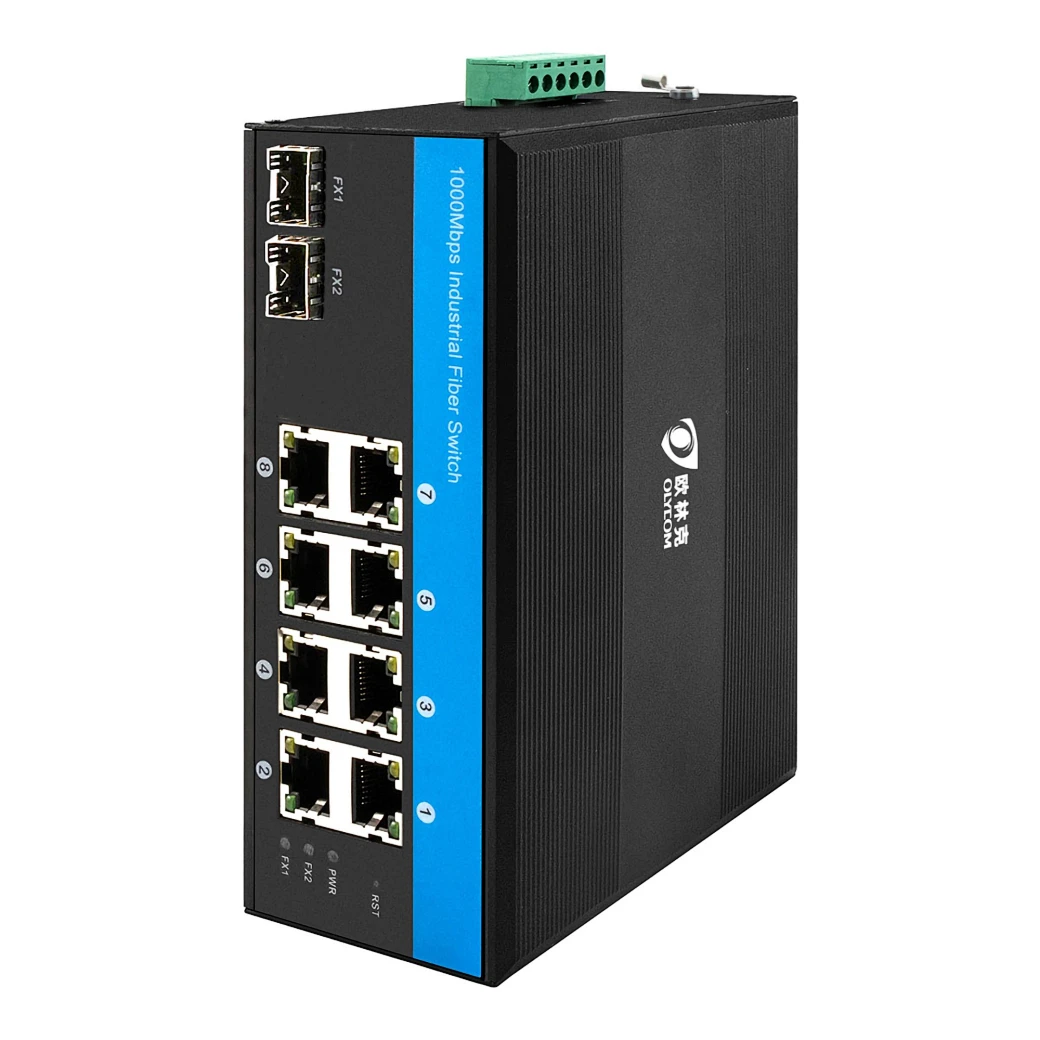

10/100/1000Mbps Industrial Fiber Switch (2 Fiber to 8 UTP )

IM-FS280GE

IM-FS280GE series is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 75 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Quantity

Contact Now

1. 8 x 10/100/1000Mbps Auto-sensing RJ45 ports

2. 2 x 1000Mbps SFP fiber ports

3. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment

4. The din mounted fiber switch support Auto MDI/MDIX

5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant

7. A store-and-forward switching mechanism

8. Operating environment temperature:-40 ° ~75 ° c

Product Name	10/100/1000Mbps Industrial Fiber Switch (2F+8TP)
Model No.	IM-FS280GE
Port	2 x 1000Mpbs SFP ports SM：1310nm/1550nm，20Km 1490nm/1550nm，40~120Km MM：1310nm，2Km 8x10/100/1000M UTP RJ45（Support MDI/MDIX auto-sensing）
Switching features	Transmission mode：storage and forward System bandwidth：40Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port，transmission distance: 20Km，40Km，60Km，80Km，100Km
LEDs	Power, network, fiber
Power supply	Input voltage：DC 12-52V No-load power：5W Reverse connection：support
Environment	Working temperature：-40°～ 75°C Storage temperature：-40°～ 85°C Working humidity：10%～90%，non-condensing Storage humidity：10%～95%，non-condensing
Industry Standards	EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8 Traffic Control：NEMA-TS2 Vibration：IEC 60068-2-6 Freefall：IEC 60068-2-32 Shock：IEC 60068-2-27 Rail Traffic：EN 50121-4
Safety	CE Mark ,commercial CE/LVD EN60950
Mechanical information	Shell：Corrugated metal shell Safety class：IP40 Dimension：158 x 114.8 x 60mm Mounting method：Din-rail mounting
Warranty	Replacement within 1year; 5 years repairing
