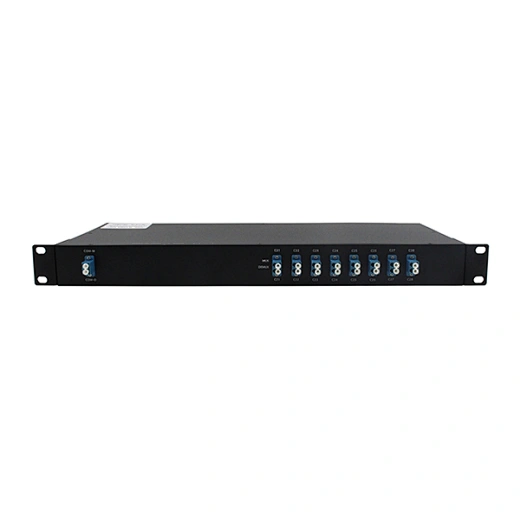

8CH DWDM MUX DEMUX Dual Fiber 19"1U Rack

OLY6000-8CH

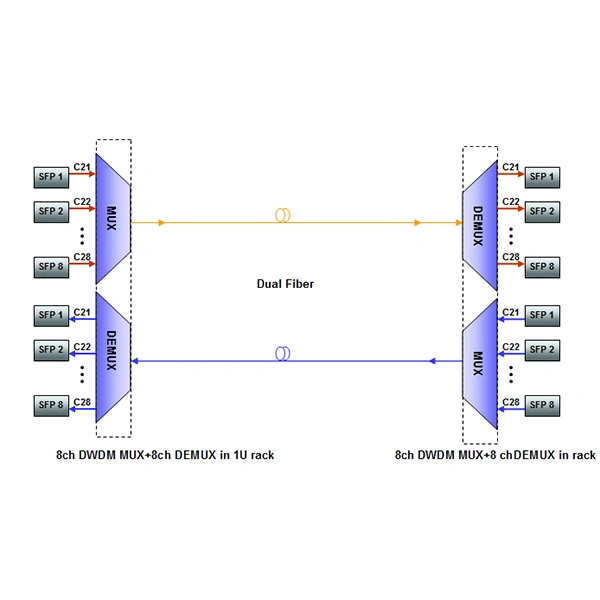

The OLK6000-8CH is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. The OLK6000-8CH may be used as a standalone tabletop device or mounted in 1-unit space of a 19” data rack.It can achieve bi-directional 8CH data multiplex and de-multiplex. The complete passive solution requires no power cabling and no configuration, it is a true plug and play solution.
Quantity
Contact Now
1. 8 Channel 100 GHz DWDM combined Multiplexer and Demultiplexer (MUX and DEMUX)
2. Standalone compact form factor-1U, Installation friendly
3. Plug’n play: requires no configuration
4. Green product: completely passive, needs no power and no cooling
5. Low Low insertion loss, insertion loss <=3dB,
6. High channel isolation:adjacent isolation >=25dB; non-adjacent isolation >=40dB
7. Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from HTFuture and other third parties
8. High reliability, MTBF of 100 years
9. Designed for Telcordia / Bellcore GR-120

Applications
DWDM transmission
Metro and long-haul networks
Point-to-point DWDM fiber optimization
Linear add/drop DWDM fiber optimization
