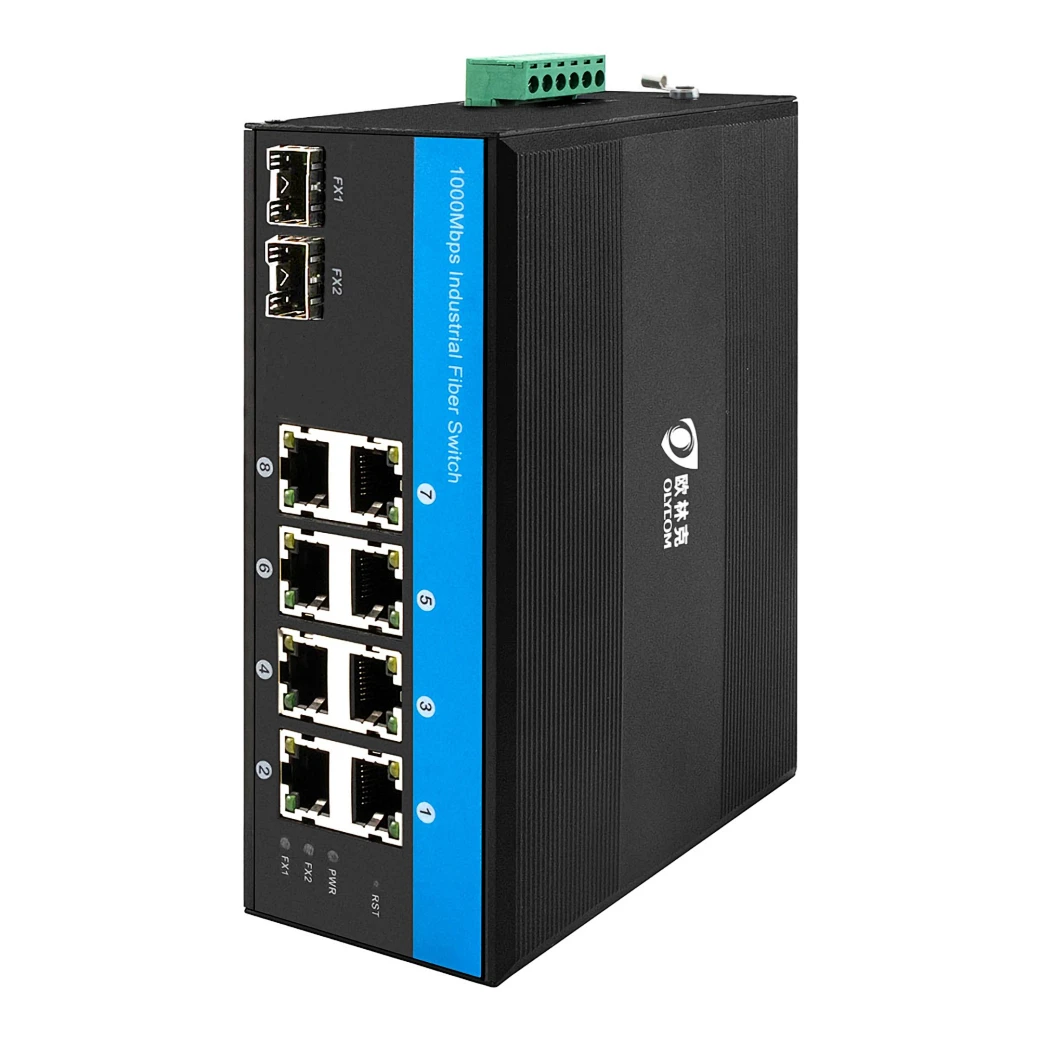

10/100/1000Mbps Industrial POE Fiber Switch ( 2 Fiber to 8 UTP )
IM-FP288GE
IM-FP288GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Quantity
1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af power on to 1 ~ 8RJ45 ports
3. 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
4. 2 x 1000Mbps SFP fiber ports
5. 6KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. Max power to15.4W under af standard to each PoE port
10. Detect the PoE models of electrical equipments.
11. A store-and-forward switching mechanism
12. Operating environment temperature:-40 ° ~75 ° c
