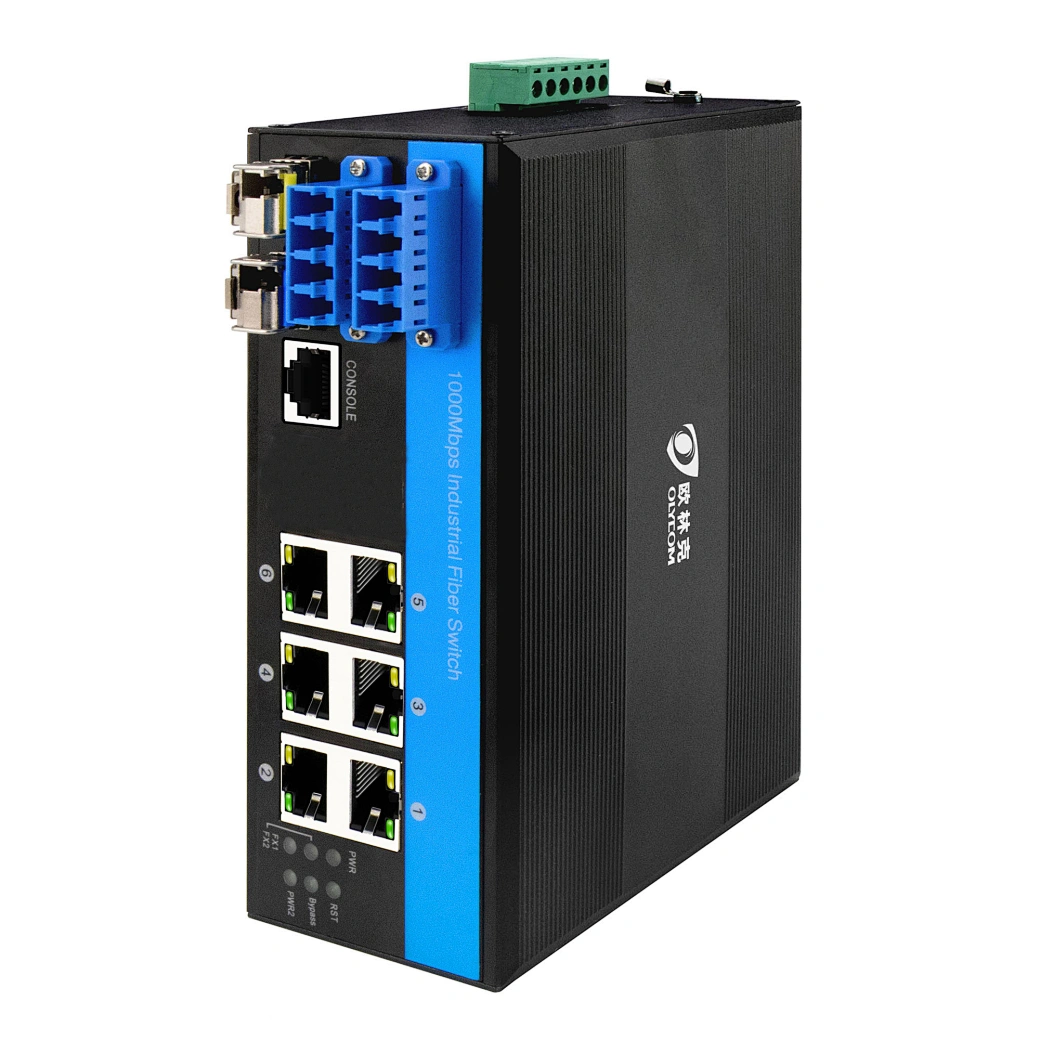

10/100/1000Mbps Bypass Managed Industrial Fiber Switch (2 Fiber to 6UTP )

IM-FBS260GW
IM-FBS260GW is a 10/100/1000 Mbps industrial managed fiber switch with bypass function. And as an indispensable part of optical communication&protection system, the fiber bypass is highly reliable and stable for different optical path needs such as Metropolitan area network (MAN), Dynamic configuration of add/drop multiplexing, System monitoring, Laboratory research and development. Meantime, the fiber pass switch characterizes: Low Insertion Loss, Wide Wavelength Range, and Low Channel Crosstalk.
Quantity
Contact Now

1. The bypass industrial switch has 6 x 10/100/1000Mbps Auto-sensing RJ45 ports, build-in bypass port.

2. The 2 x SFP fiber ports can be 2.5G as one industrial 2.5G managed switch

3. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment

4. Support Auto MDI/MDIX

5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant

7. A store-and-forward switching mechanism

8. Operating environment temperature:-40 ° ~85 ° c

9. Support cable diagnosis and can locate the fault point for the industrial layer 2 switch

10. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption

11. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)

12. Support Qos, transport classification  Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services

13. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR for th hardened VLAN fiber switch

14. The industrial layer 2 switch supports dynamic IEEE802.3ad LACP link aggregation, static link aggregation

15. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching

16. Support IGMP agent report, MLD snooping

17. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2

18. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet

19. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing

20. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82

21. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP

22. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
