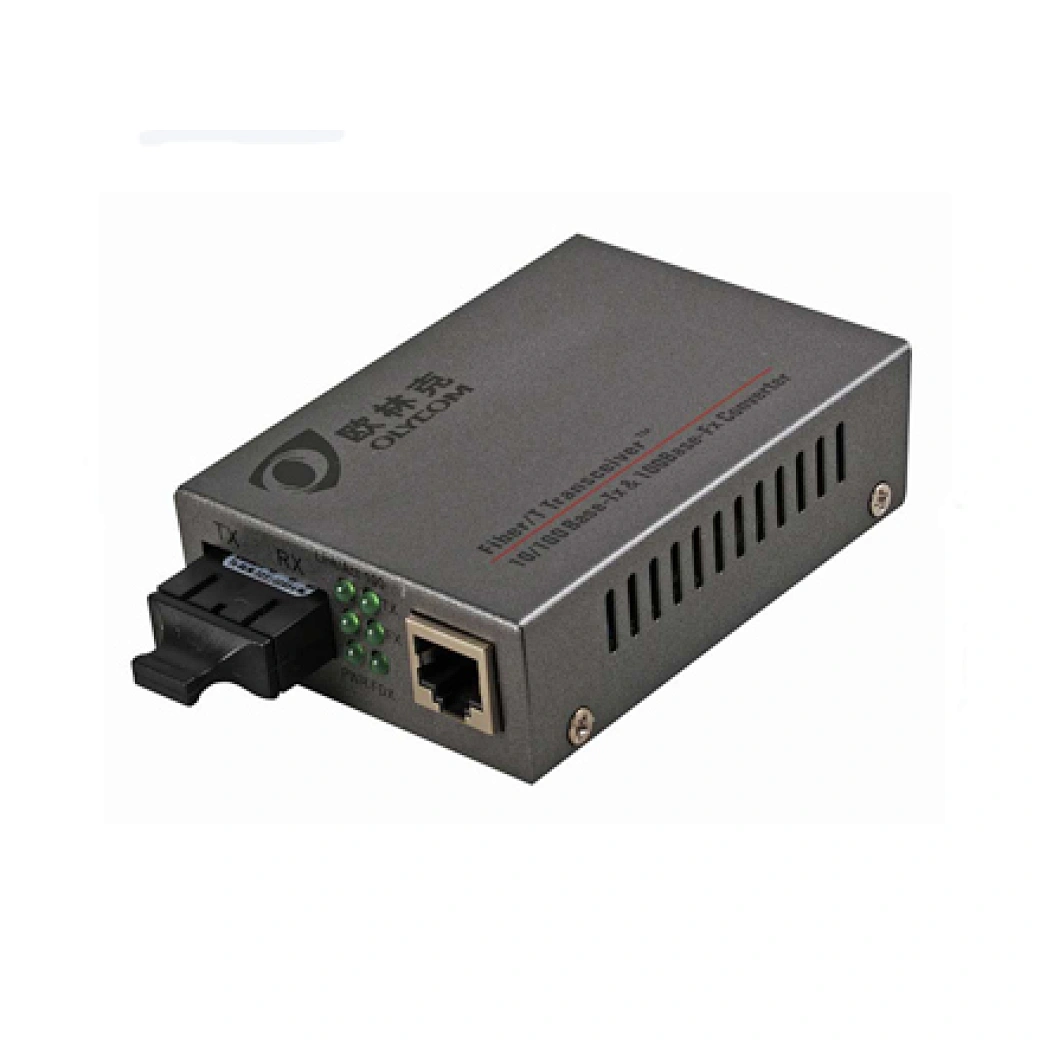

10/100M Duplex Fiber Media Converter External Power Supply

TA210-FE

The TA210 series of Ethernet media converters with external power supply are 10/100Mbps auto-sensing and utilize fiber optics to extend the physical distance range of typical Ethernet links (100m) to 5Km max. on MMF and 100Km max. on SMF.

Quantity

Contact Now

1. 100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion

2. Auto-MDI/MDIX copper RJ45 port

3. 1552byte super data packet transmission

4. Full duplex-flow control, half duplex-back pressure

5. Full- positioned LEDs to indicate power and network status

Standard	IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX	50/125um fiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um single mode fiber cable (20/40/60/80/100km)
Conversion Mode / Delay Time	Store-and-Forward < 10us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	Auto-MDI/MDIX
Fiber Connector	SC standard, ST/FC optional
Wavelength	1310/1550nm
Dimensions	70mm(W) x 93mm(D) x 25mm(H)
Weight	Net weight : 0.2kg; Gross weight : 0.35kg
Input Voltage	DC 5V1A with External power adapter
Power Consumption	<2.5W
MTBF	50,000 hours
BER	<1/1000000000
MAC Address Table	2K
Buffer Size	512K
Operating Temperature	0℃~50℃
Storage Temperature	-40℃~70℃
Storage Humidity	5%~90% non-condescending
