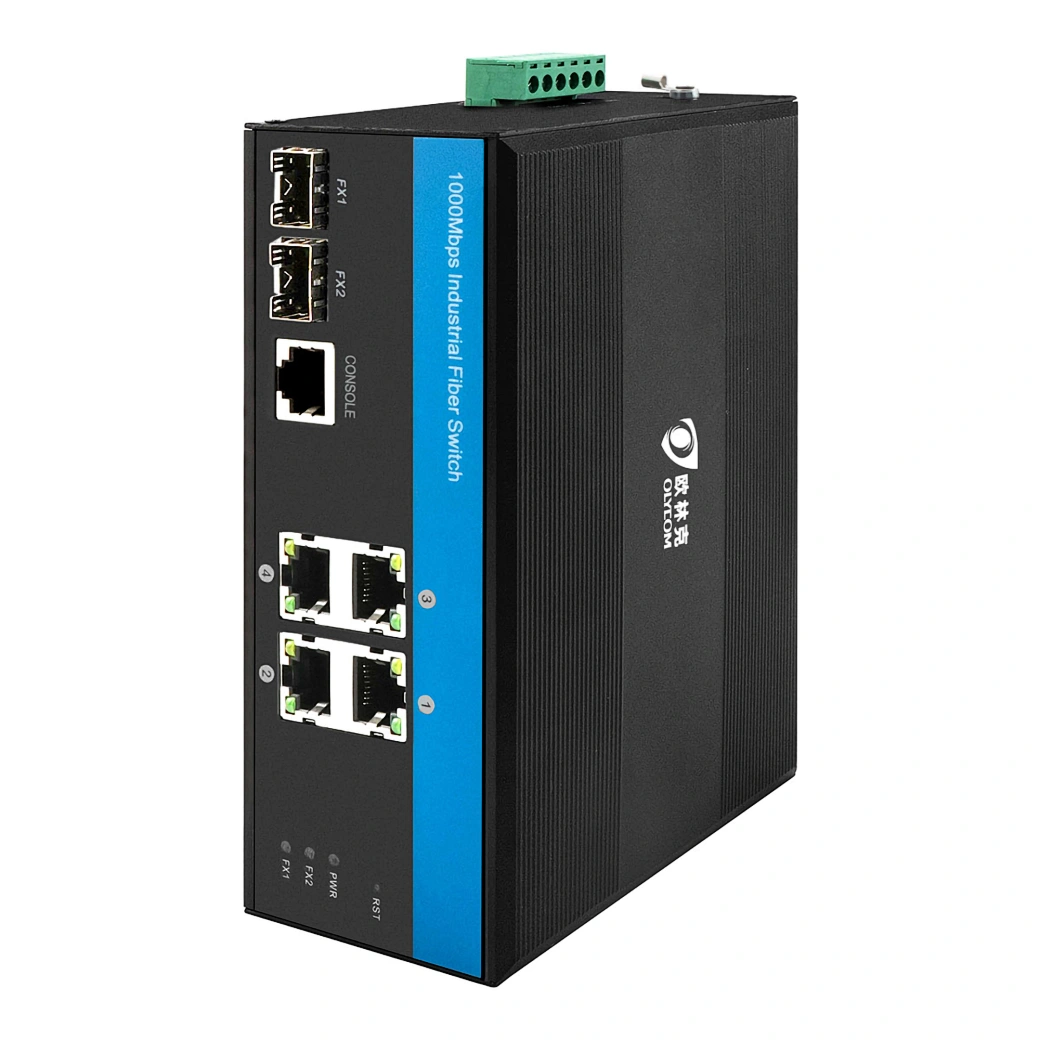

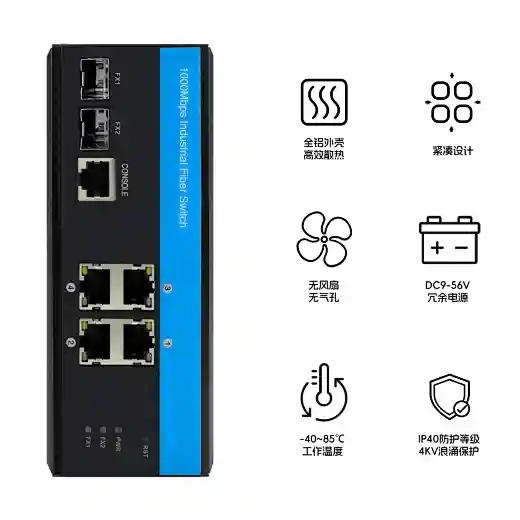

10/100/1000Mbps Managed Industrial POE Fiber Switch (2 Fiber to 4UTP )

IM-FP244GW
IM-FP244GW series is the 10/100/1000 Mbps managed industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Quantity
Contact Now
1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. The outdoor POE 48V switch supports IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
3. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
4. 2 x 1000Mbps SFP fiber port
5. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. A store-and-forward switching mechanism
10. The operating environment temperature of industrial 2.5G 48V fiber switch is -40 ° ~85 ° c
11. Support cable diagnosis and can locate the fault point
12. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
13. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
14. Support Qos, transport classification  Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
15. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
16. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
17. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
18. Support IGMP agent report, MLD snooping
19. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
20. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
21. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
22. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
23. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
24. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
