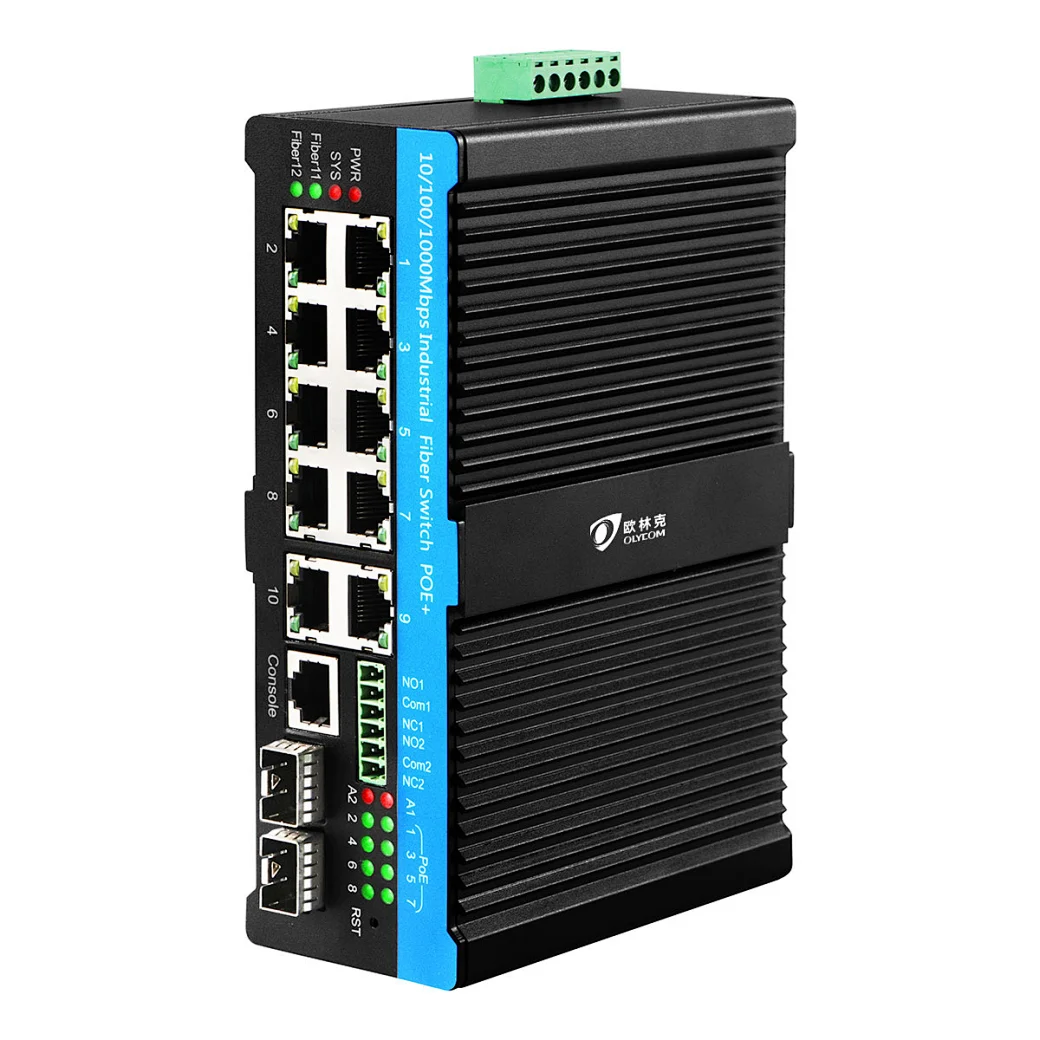

Managed 10/100/1000Mbps Industrial Fiber Switch ( 2 Fiber to 10UTP) (POEAF/AT/BT Optional)

IM-FS0210GWL

IM-FS0210GWLseries is the 10/100/1000 Mbps managed industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system. Support POE AF/AT/BT and each network port can reach 90W output.

Quantity

Contact Now

1. The rugged 10 port L2 SFP switch has 8x 10/100/1000Base-T RJ-45 and 2x 100/1000/2500Base-FX SFP Fiber

2. 2 Copper/MSA Fiber Combo ports ( Port 9, 10, and FX1, FX2)

3. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment

4. Support Auto MDI/MDIX

5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant

7. A store-and-forward switching mechanism

8. Operating environment temperature:-40 ° ~85 ° c

9. Support cable diagnosis and can locate the fault point for the outdoor 2.5G managed switch

10. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption

11. The industrial RSTP SFP switch supports STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)

12. Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services

13. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR

14. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation

15. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching

16. Support IGMP agent report, MLD snooping

17. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2

18. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet

19. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing

20. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82

21. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP

22. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.

Product Name	10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+10TP)
Model No.	IM-FP21008GW
Port	2x 100/1000/2500Base-FX SFP Fiber SM：1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM：1310nm, 2Km; 8x10/100/1000M UTP RJ45（Support MDI/MDIX auto-sensing）
Standard	IEEE 802.3: 10Base-T 10Mbit/s Ethernet IEEE 802.3u: 100Base-TX, 100Base-FX, Fast Ethernet IEEE 802.3z: 1000Base-T Gbit/s Ethernet over fiber optic IEEE 802.1d: STP (Spanning Tree Protocol) IEEE 802.1s: 100Base-TX, 100Base-FX, Fast Ethernet IEEE 802.1w: RSTP (Rapid Spanning Tree Protocol ) ITU-T G.8032 :ERPS (Ethernet Ring Protection Switching) IEEE 802.1Q: Virtual LANs (VLAN) IEEE 802.1X: Port based and MAC based Network, Access Control, Authentication IEEE802.3ac: Max frame size extended to 9600Bytes. IEEE 802.3ad: Link aggregation for parallel links with LACP(Link Aggregation Control Protocol) IEEE 802.3x: Flow control for Full Duplex IEEE 802.1ad: Stacked VLANs IEEE 802.1p: LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization IEEE 802.1ab: Link Layer Discovery Protocol (LLDP) IEEE 802.1az: EEE (Energy Efficient Ethernet) IEEE802.3af: 15.4W IEEE802.3at: 30W IEEE802.3bt: 90W
VLAND ID	4094 IEEE802.1Q VLAN VID
Switch Architecture	Back-plane (Switching Fabric): 21Gbps Full wire-speed
Data Processing	Store and Forward
Flow Control	IEEE 802.3x for full duplex mode Back pressure for half duplex mode
Network Connector	8x 10/100/1000Base-TX RJ-45 Auto MDI/MDI-X function,
Console	RS-232 (RJ-45)
Network Cable	UTP/STP above Cat. 5e cable
Protocols	CSMA/CD
Reverse Polarity Overload Current Protection	Supported Supported
CPU Watch Dog	Supported
Power Supply	Redundant DC48V (48~57VDC) Input or 100-240VAC power (Removable Terminal Block )
Power Consumption	3.5W(no-load)
LED	Per unit: Power 1 (Red), SYS (Red), Alarm (Red) PoE(Green) RJ-45 port: Link/Active (Green) Speed(Yellow) SFP Fiber port: Link/Active (Green)
Jumbo Frame	9.6KB
IEEE802.3ac	Max frame size extended to 1522Bytes (allow Q-tag in packet)
MAC Address Table	8K
Warning Message	System Syslog, alarm relay
Alarm Relay Contact	Relay outputs with current carrying capacity of 1 A @30VDC
Operating Temperature	-40 ~ 85°C
Operating Humidity	0% to 95% (Non-condensing)
Storage Temperature	-40 ~ 85°C
Dimensions	165 x 112 x 45.5mm
Weight	0.85kg
Installation Mounting	Din-rail mounting
FCC Emmission	CE FCC Part 15 Subpart B Class B 2010 EN50121 EN 5502:2006+A1:2007 EN61000-3 EN55035 EN55032 EN50155 2:2006+A1:2009+A2:2009
Safety	EN62368
6KV Surge Protection	Supported for UTP and Fiber port
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Software Specifications
Topology
VLAN	IEEE 802.1q VLAN,up to 4094 802.1Q VLAN VID IEEE 802.1q VLAN,up to 4094 Groups IEEE 802.1ad MAC-based VLAN,up to 256 entries IP Subnet-based VLAN, up to 128 entries Protocol-based VLAN(Ethernt, SNAP, LLC), up to 128 entries VLAN Translation, up to 256 entries GVRP (GARP VLAN Registration Protocal) MVR ( Multicast VLAN Registration)
Link Aggregation (Port Trunk)	Static (Hash with SA, DA, IP, TCP/UDP port), up to 5 trunk group Dynamic (IEEE 802.3ad LACP), up to 5 trunk group
Spanning Tree	IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP
POE/POE+	IEEE802.3at 30W IEEE802.3af 15.4W IEEE802.3bt 90W
Loop Protection	Supported
ITU-T G.8032 / Y.1344 ERPS (Ethernet Ring Protection)	Recovery time <50ms Single Ring, Sub-Ring, Multiple ring topology network
QoS Features
Class of Service	IEEE802.1p 8 active priorities queues for per port
Traffic Classification QoS	IEEE802.1p based CoS IP Precedence based CoS IP DSCP based CoS
Traffic Classification QoS	QCL(QoS Control List): Frame Type, Source/ Destination MAC, VLAN ID, PCP, DEI QCE(QoS Control Entry): Protocol, Source IP, IP Fragment, DSCP, TCP/UDP port number
DiffServ (RF 2474) Remarking
Storm Control	for Unicast, Broadcast, Multicast
IP Multicasting Features
IGMP / MLD Snooping	IGMP Snooping v1, v2, v3 / MLD Snooping v1, v2 Port Filtering Profile Throttling, Fast Leave Maximum Multicast Group : up to 1022 entries Query / Static Router Port
Security Features
IEEE 802.1X	Port-Based MAC-Based
ACL	Number of rules : up to 256 entries for L2 / L3 / L4 L2 : Mac address SA/DA/VLAN L3: IP address SA/DA, Subnet L4: TCP/UDP
RADIUS authentication & accounting
TACACS+ authentication & accounting, TACACS+ 3.0
HTTPS, HTTP	Supported
SSL / SSH v2	Supported
User Name Password Authentication	Local Authentication Remote Authentication (via RADIUS / TACACS+)
Management Interface Access Filtering	Web, Telnet / SSH , CLI RS-232 console
Management Features
CLI	Cisco® like CLI
Web Based Management
Telnet	Server
SNMP	V1, V2c, V3
SW & Configuration Upgrade	TFTP, HTTP Redundant firmware in case of upgrade failure
Modbus/TCP	Support for management and monitoring
RMON	RMON I , RMON II
MIB	RFC1213 MIB II, Private MIB
UPnP	Supported
DHCP	Server, Client, Relay, Snooping Snooping option 82 Relay option 82
IP Source Guard	Supported
Port Mirroring	Supported
Event Syslog	Syslog server (RFC3164) (Support 1 server )
Warning Message	System syslog, e-mail, alarm relay
IEEE1588	Support
NTP	Client
DNS	Client, Proxy
LLDP (IEEE 802.1ab)	Link Layer Discovery Protocol LLDP-MED
IPv6 Features
IPv6 Management	Telnet Server/ICMP v6
SNMP over IPv6	Supported
SSH over IPv6	Supported
IPv6 NTP	Client
IPv6 QoS	Supported
HTTP over IPv6	Supported
IPv6 Telnet	Supported
IPv6 TFTP	Supported
IPv6 ACL	Number of rules: up to 256 entries for L2 / L3 / L4 L2 : Mac address SA/DA/VLAN L3: IP address SA/DA, Subnet L4: TCP/UDP
Others Features
Green Ethernet	Supports IEEE802.3az EEE (Energy Efficient Ethernet) Management to optimize the power consumption Determine the cable length and lowering the power for ports with short cables Lower the power for a port when there is no link LED Power Management :Adjustment LEDs intensity
Cable Diagnostic	Measuring UTP cable normal or broken point distance
