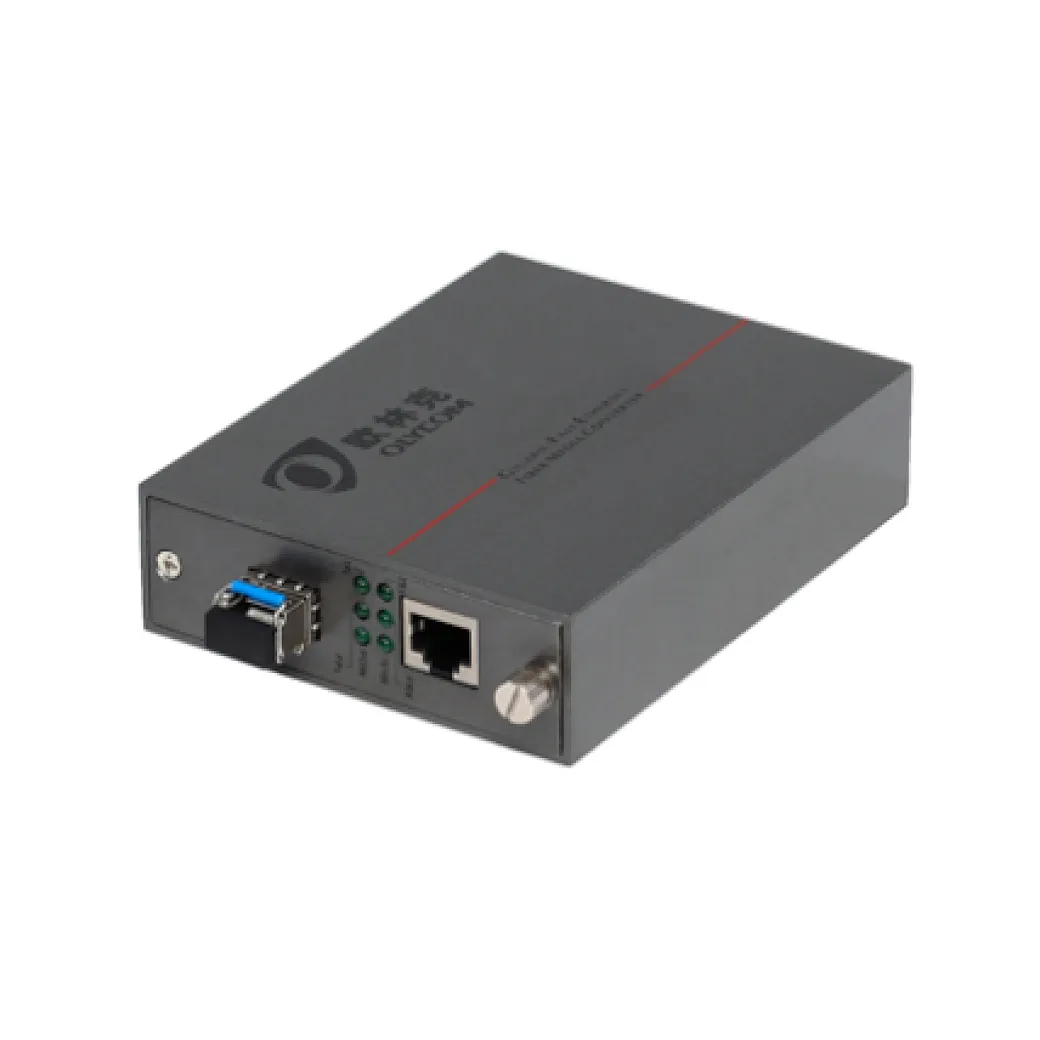

Premium 10/100M SFP Fiber Media Converter External Power Supply

TA243-FE

Olycom TA243-FE series Megabit Ethernet SFP fiber media converters bridge the gap between copper and fiber infrastructures. The SFP fiber media converters are designed for maximum convenience for fiber to copper Ethernet conversion applications which require flexibility in transmission rates, working distances, and fiber network types which can be realized by simply changing the hot-plug-and-play SFPs.

Quantity

Contact Now

1. High flexibility with hot plug-and-play SFP

2. 100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion

3. Link fault pass through (LFPT)

4. Full- positioned LEDs to indicate power and network status

5. Unique premium aluminum compact closure

6. Same swappable card for standalone units and 19” 2U systems

7. Standalone SFP media converter support 5VDC input

Standard	IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
SFP	SX, LX, EX, ZX, EZX, and Bi-Di optical transceivers are available
Conversion Mode / Delay Time	Store-and-Forward < 10us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	Auto-MDI/MDIX
Fiber Connector	LC (duplex), LC/SC(simplex)
Wavelength	1310/1550nm

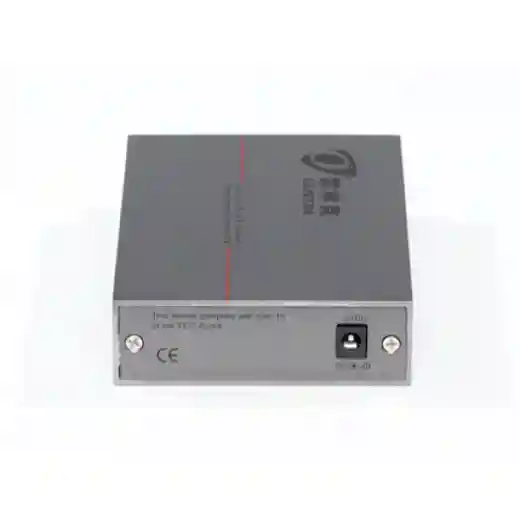

Input Voltage	DC 5V1A with External power adapter
Power Consumption	<2.5W
MTBF	50,000 hours
BER	<1/1000000000
MAC Address Table	2K
Buffer Size	512K
Operating Temperature	0℃~50℃
Storage Temperature	-40℃~70℃
Storage Humidity	5%~90% non-condescending
Dimensions	135mm(W) x 90mm(D) x 28mm(H)
Weight	Net weight : 0.18kg, Gross weight : 0.44kg
