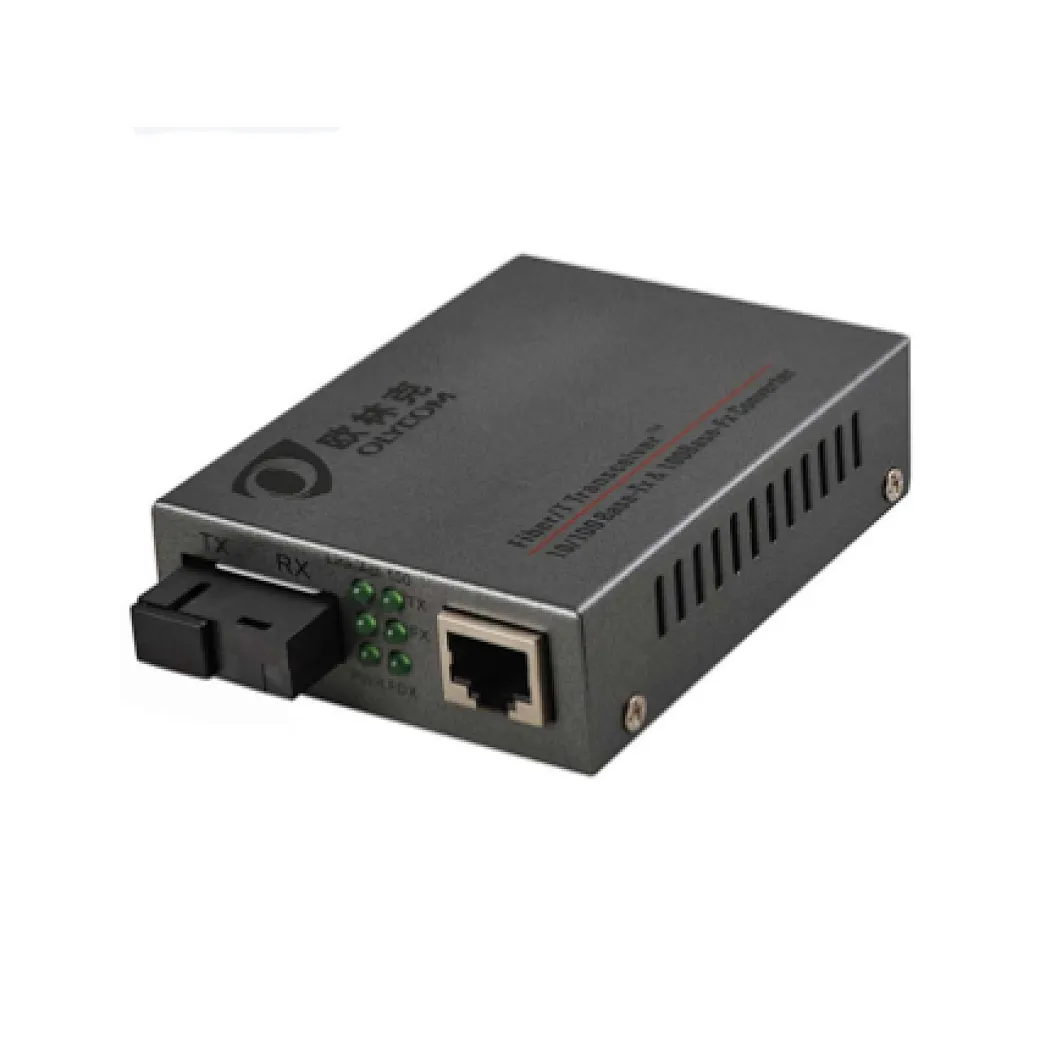

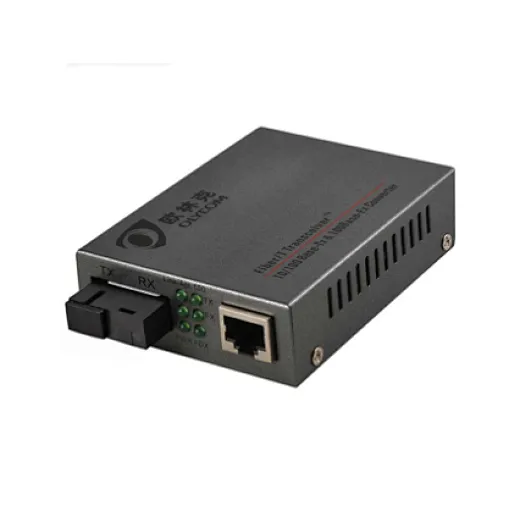

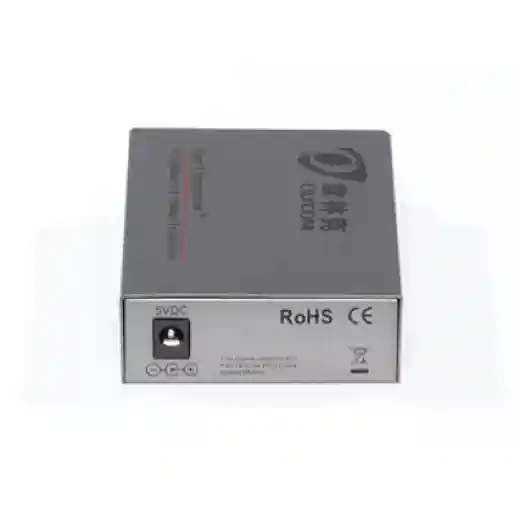

10/100M Simplex Fiber Media Converter External Power Supply

TA510-FE

The TA510-FE series, the fast Ethernet media converters, featuring 1-fiber transmission with Wavelength Division Multiplexing (WDM) technology, utilize fiber optics to extend the physical distance range of typical Ethernet link to 20km-100km. It’s often applied in school, cyber bars, offices, and telecommunication networks.

Quantity

Contact Now

1. Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber

2. 100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion

3. 1552byte super data packet transmission

4. Full duplex-flow control, Half duplex-back pressure

5. Full- positioned LEDs to indicate power and network status

Standard	IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX	9/125um singlemode fiber cable (20/40/60/80/100km)
Conversion Mode / Delay Time	Store-and-Forward < 10us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	Auto-MDI/MDIX
Fiber Connector	SC standard, ST/FC optional
Wavelength	1310/1550nm
Dimensions	70mm(W) x 93mm(D) x 25mm(H)
Weight	Net weight : 0.2kg; Gross weight : 0.35kg
Input Voltage	DC 5V1A with External power adapter
Power Consumption	<2.5W
MTBF	50,000 hours
BER	<1/1000000000
MAC Address Table	2K
Buffer Size	512K
Operating Temperature	0℃~50℃
Storage Temperature	-40℃~70℃
Storage Humidity	5%~90% non-condescending
