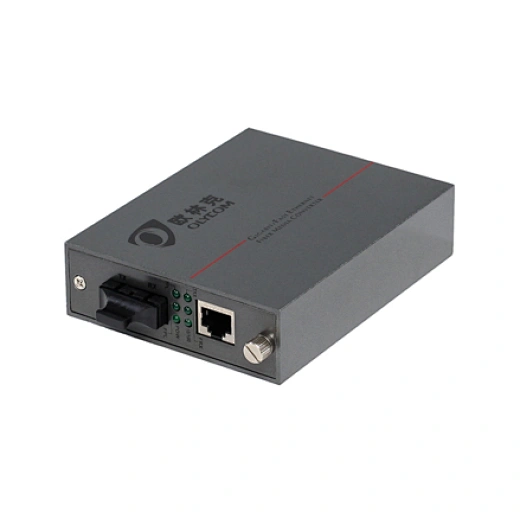

Premium 10/100M Duplex Fiber Media Converter External Power Supply

TA240-FE

The unique premium TA240-FE series features flexibleswap-ability (same card for standalone units and 19” 2U chassis), versatile compatibility with 19”2U systems, and customized design. TA240 10/100Mbps series utilize 2-core optical fiber to extend the physical distance range of typical Ethernet links (100m) to 5Km max. on MMF and 100Km max. on SMF.

Quantity

Contact Now

1. 10/100 autosensing, auto-MDI/MDIX

2. Long distance transmission (Max. 5Km on MMF, 120Km on SMF)

3. 50,000 hours MTBF

4. Link fault pass through (LFPT)

5. Unique premium aluminum compact closure

6. Same swappable card for standalone units and 19” 2U systems

Standard	IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX	50/125um fiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km)
Conversion Mode / Delay Time	Store-and-Forward < 10us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	Auto-MDI/MDIX
Fiber Connector	SC standard, ST/FC optional
Wavelength	1310/1550nm
Input Voltage	DC 5V1A with External power adapter
Power Consumption	<2.5W
MTBF	50,000 hours
BER	<1/1000000000
MAC Address Table	2K
Buffer Size	512K
Operating Temperature	0℃~50℃
Storage Temperature	-40℃~70℃
Storage Humidity	5%~90% non-condescending
Dimensions	135mm(W) x 90mm(D) x 28mm(H)
Weight	Net weight : 0.18kg, Gross weight : 0.44kg
