Olycom's Industrial POE Network Switch

author: Olycom

2024-07-26

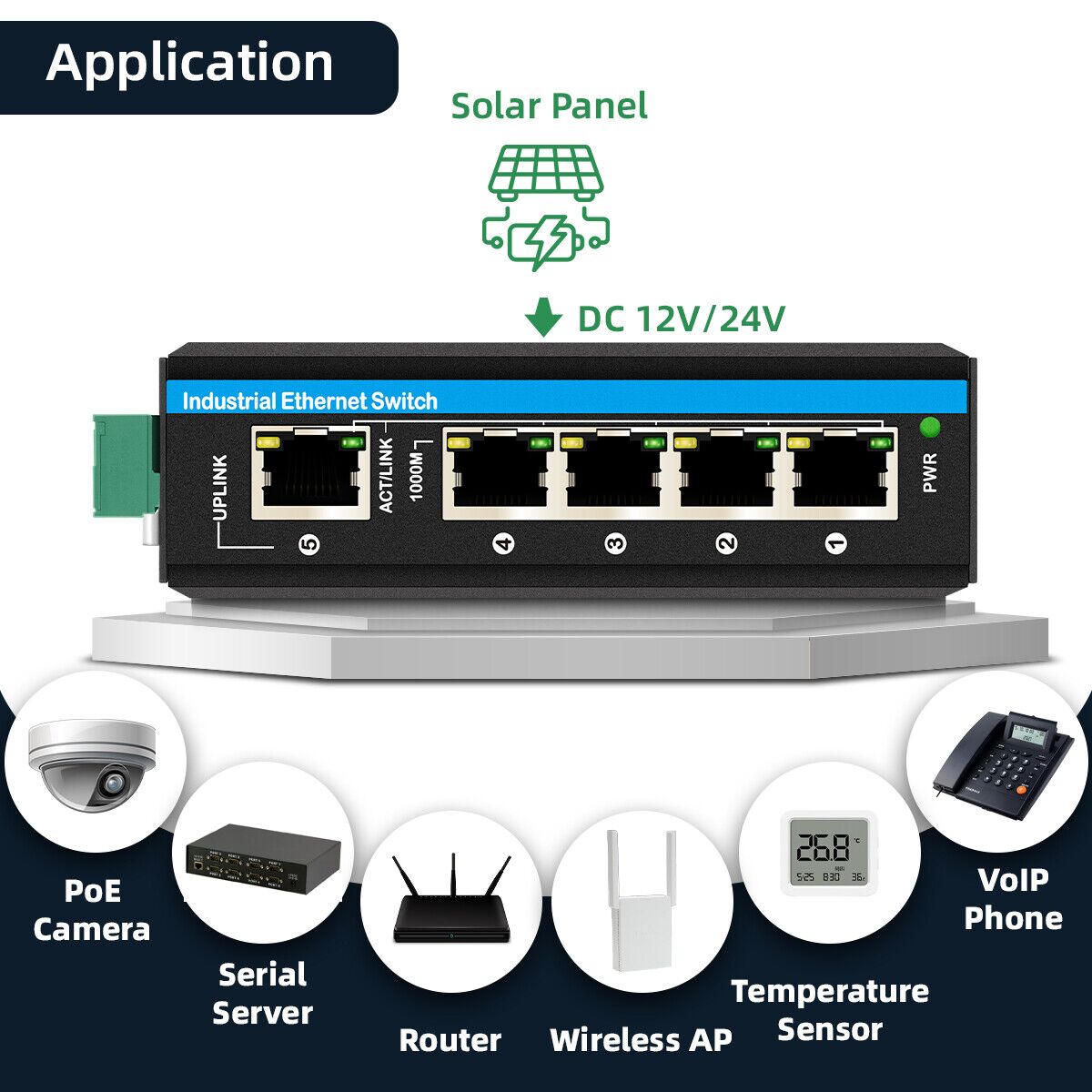

In typical application scenarios such as outdoor monitoring and mobile vehicle monitoring, there is often a lack of DC 48V power supply. The Olycom's 12-48V PoE boost industrial-grade switch can provide 12-48V DC voltage. Each PoE port can provide a maximum power output of 30W, which can provide fast, efficient and low-cost transmission networking and PoE boost power supply solutions for PoE cameras, outdoor industrial APs, bridges and other equipment in outdoor places such as solar energy, wind power, industrial automation, etc.

IM-WP054BGE series is the 10/100/1000 Mbps industrial POE network switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system. This product finds extensive application in diverse fields such as smart grid, rail transportation, new energy, aerospace, intelligent manufacturing, industrial automation, and other fields.

Here are som features:

Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports

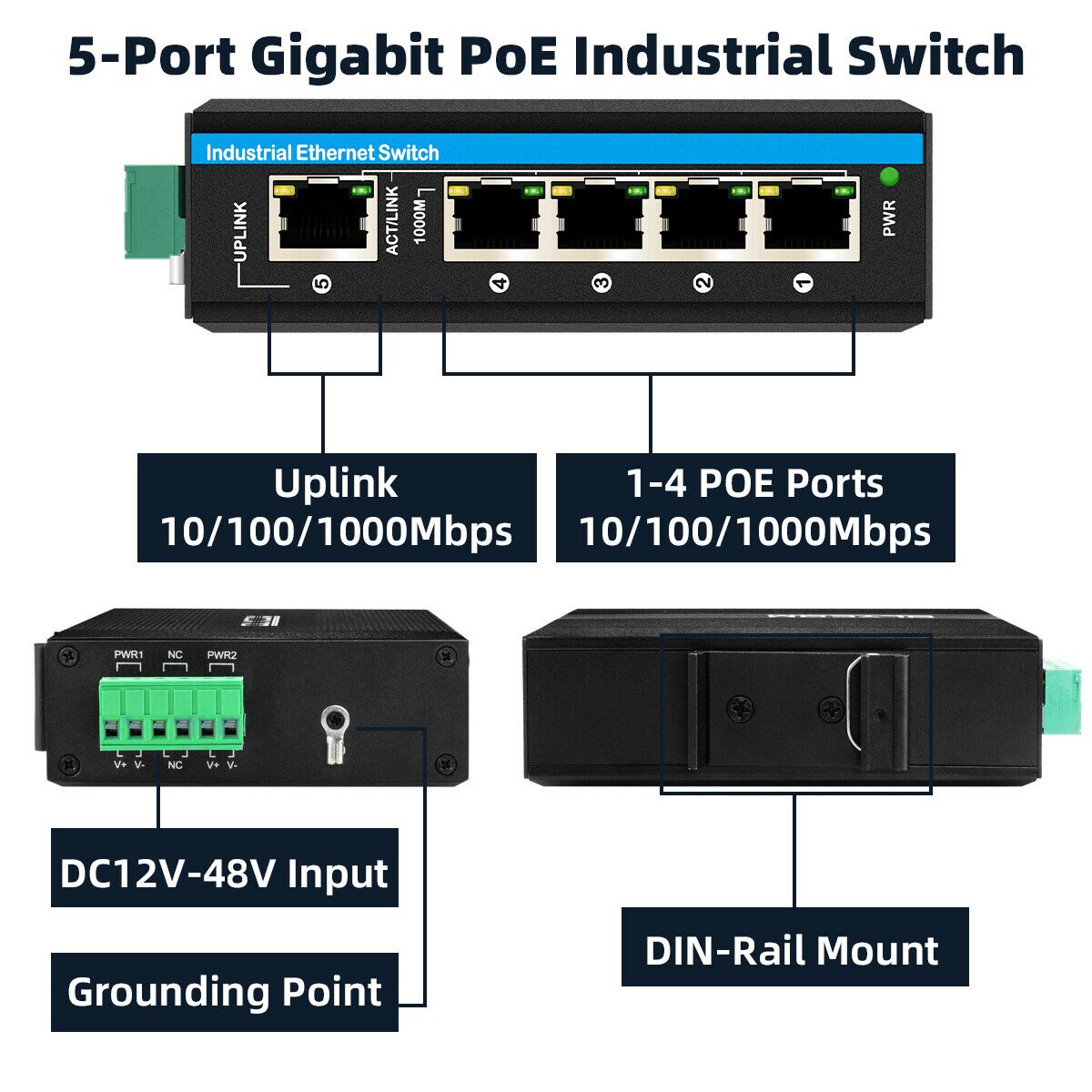

4 x 10/100/1000Mbps Auto-sensing RJ45 ports, 1 x 10/100/1000Mbps uplink network port

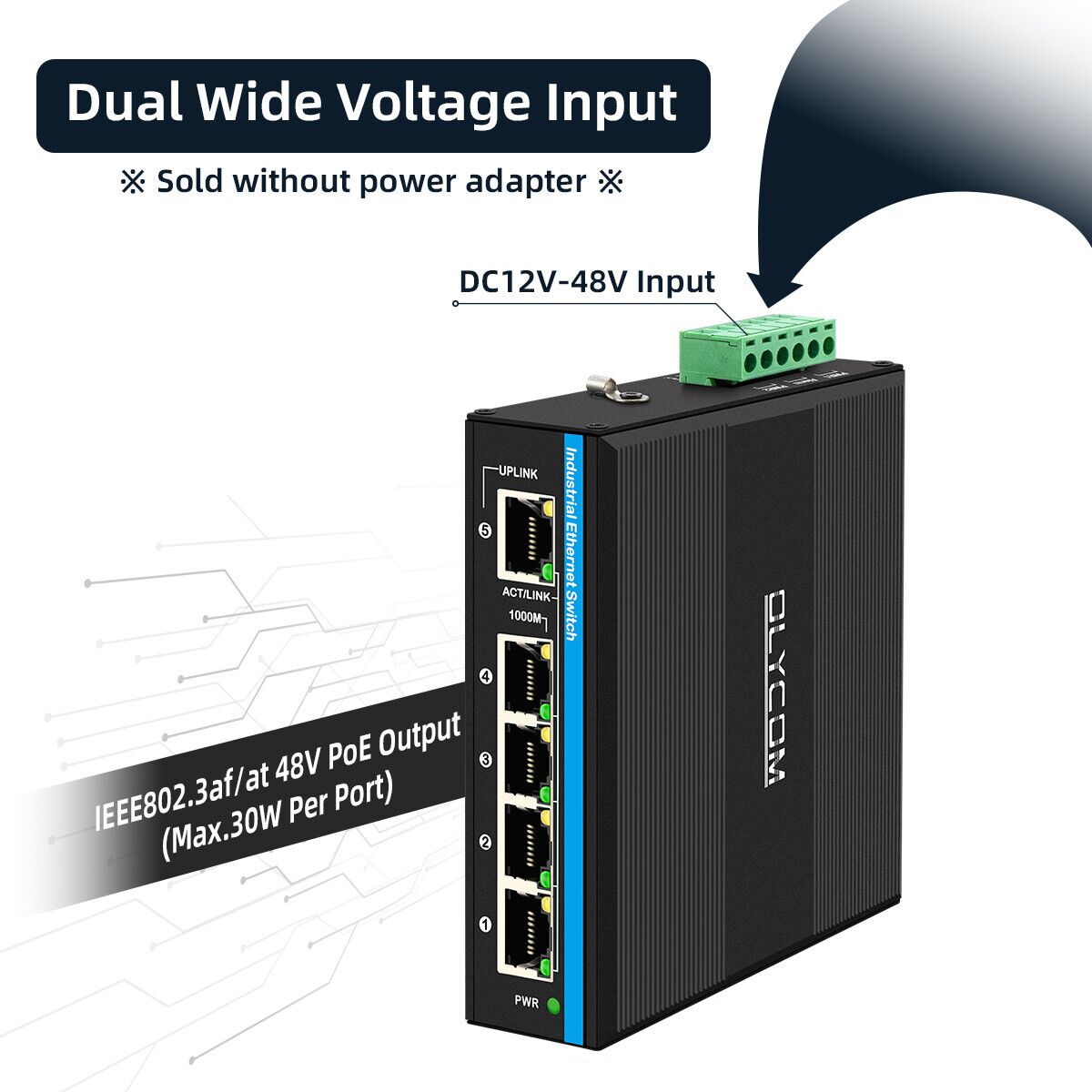

Built-in voltage booster for DC12-48V input which can be used for solar power/Trunk/VoIP system/CCTV security system
6 KV Ethernet surge protection, adapt to a harsh outdoor environment
Max power to15.4W under af standard, 30W under at standard to each PoE port
Detect the PoE models of electrical equipments.
Operating environment temperature:-40 ° ~75 ° c

In a word, the 5port PoE switch features a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only. It can provide PoE boost power supply solutions for PoE cameras, outdoor industrial APs, bridges and other equipment in outdoor places such as solar energy, wind power, industrial automation, etc. If you are interested in IM-WP054BGE, welcome to learn and communicate.
