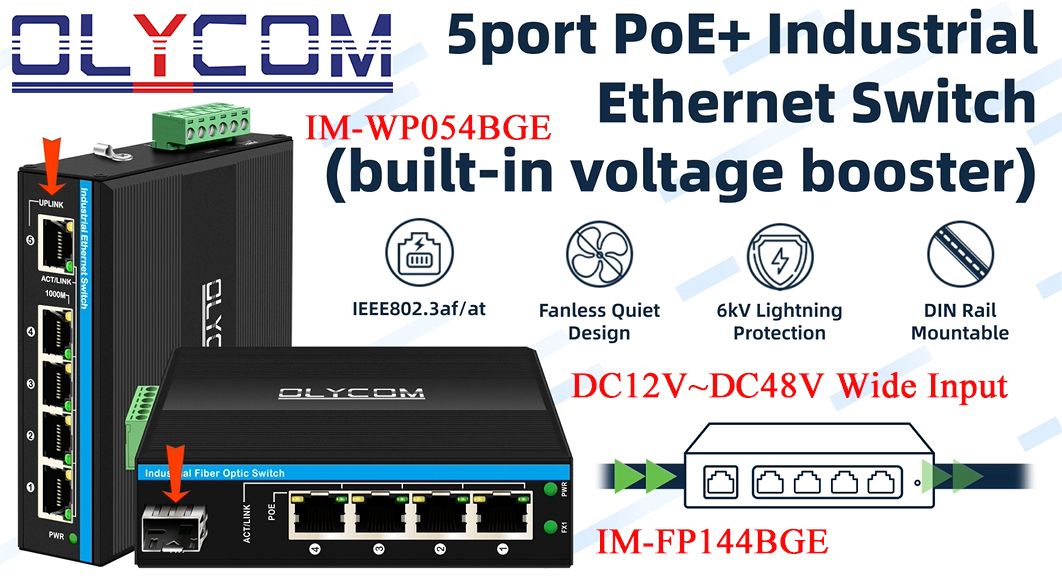

Olycom's Voltage Booster Switch Series

Olycom’s Voltage Booster Switch series is the 10/100/1000 Mbps industrial POE network switch, features a built-in voltage booster, supports DC12-48V dual power input, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. They can be used for solar power/Trunk/VoIP system/CCTV security system.

Key Features

• 2*DC12V/DC24V/DC48V Redundant Input
• 4*PoE af/at output, DC48V active PoE, 120W budget
• 5*100M/1000Mbps ports(auto-sensing SFP fiber)
• Diagnostic LEDs(PWR, Fiber, Network, PoE)
• Support OEM(Logo, Model name, PVC label.)



Application

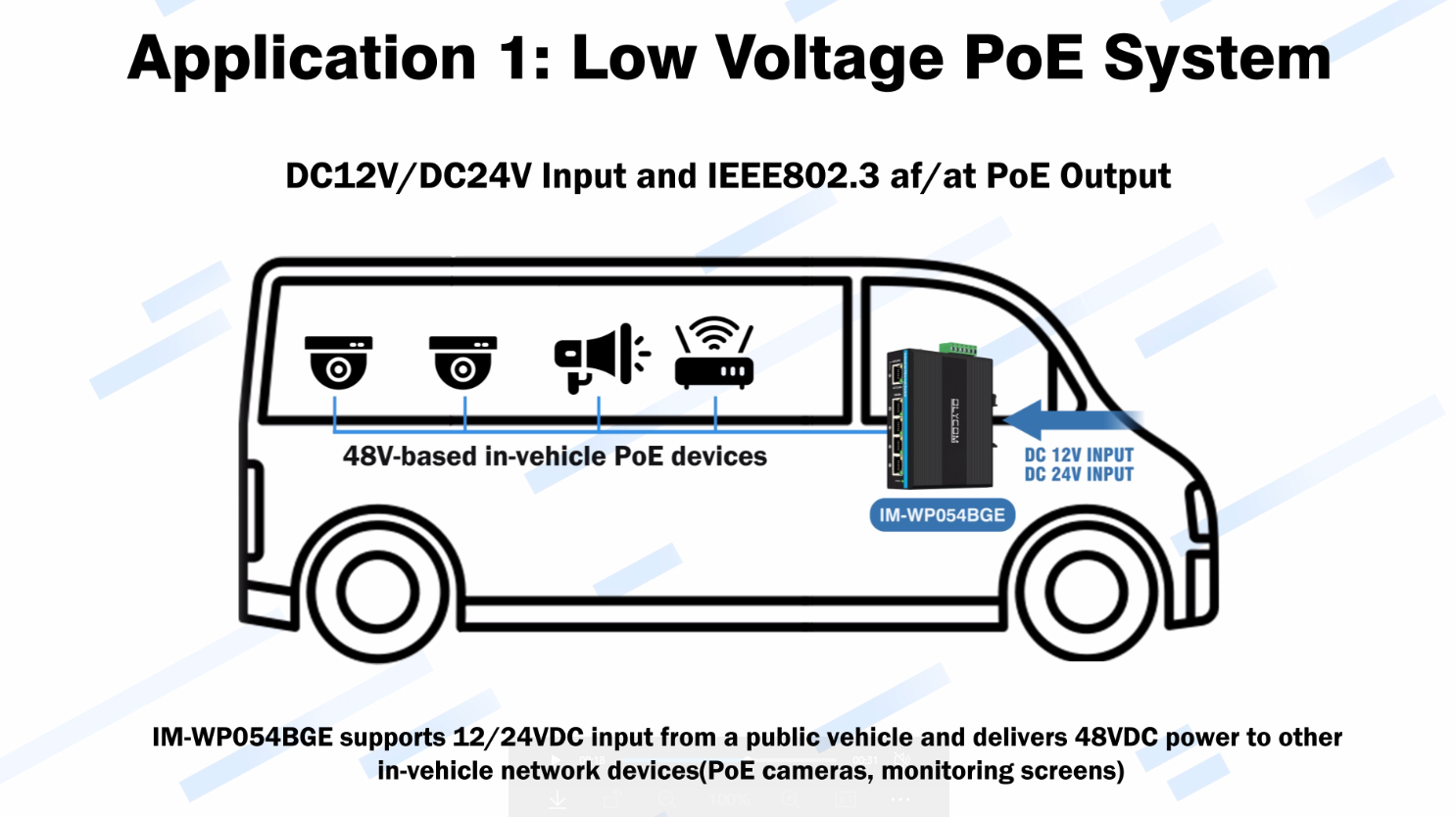

• Low Voltage PoE System

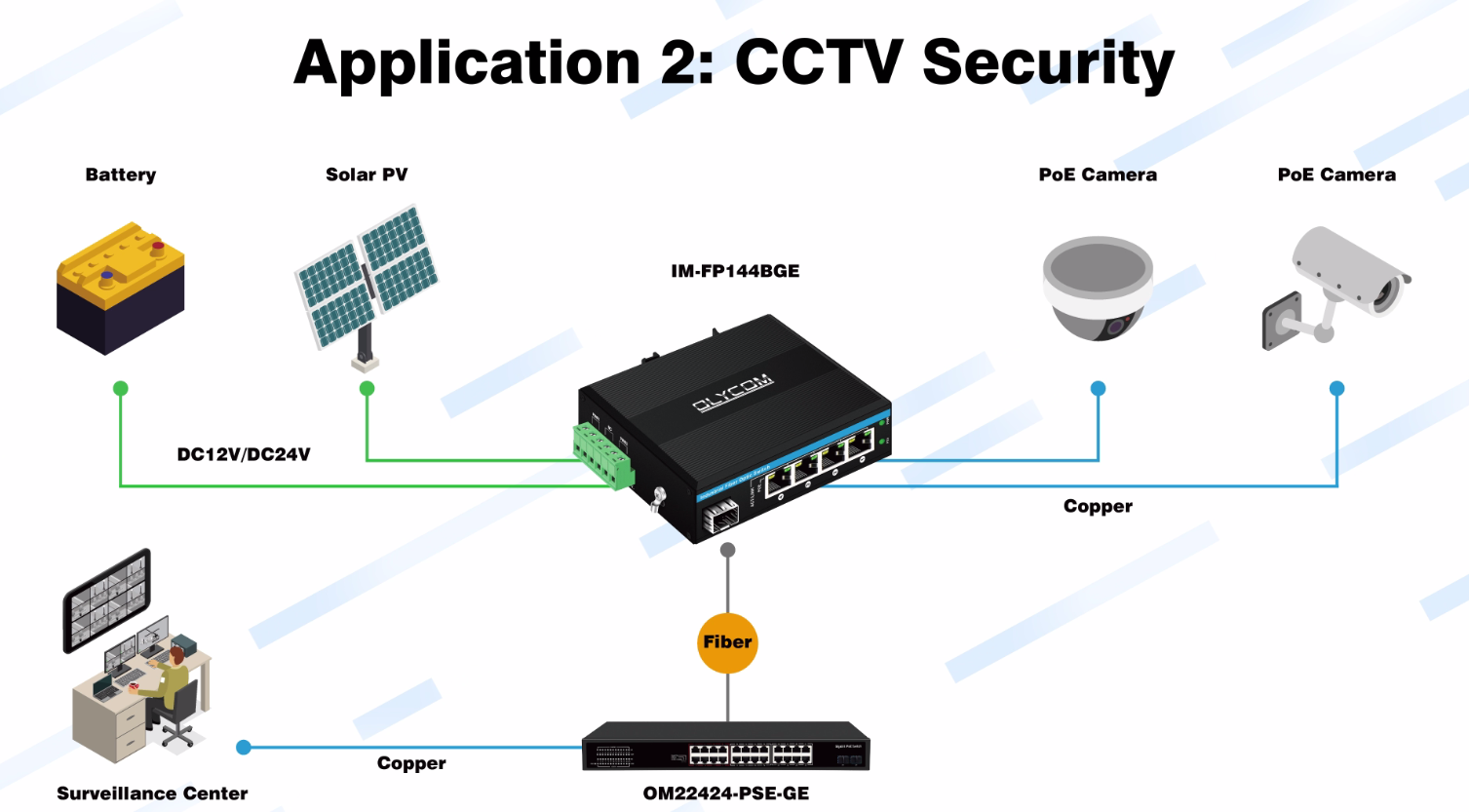

• CCTV Security
• In-Vehicle Communication

FAQ of Voltage Booster Switch Series

1, Can I connect it with a non-PoE device?

Yes, it is 4*auto-sensing PoE ports detecting if the connected devices support PoE or not.

There will ONLY be network transmission ifit is not 802.3af or 802.3at compliant.

2, What is the uplink speed?

100M/1oooMbps speed, for the SFP uplink, it also supports auto-sensing.

That is to say, it works when you plug in a 155Mb/s OR 1.25Gb/s fiber transceiver.

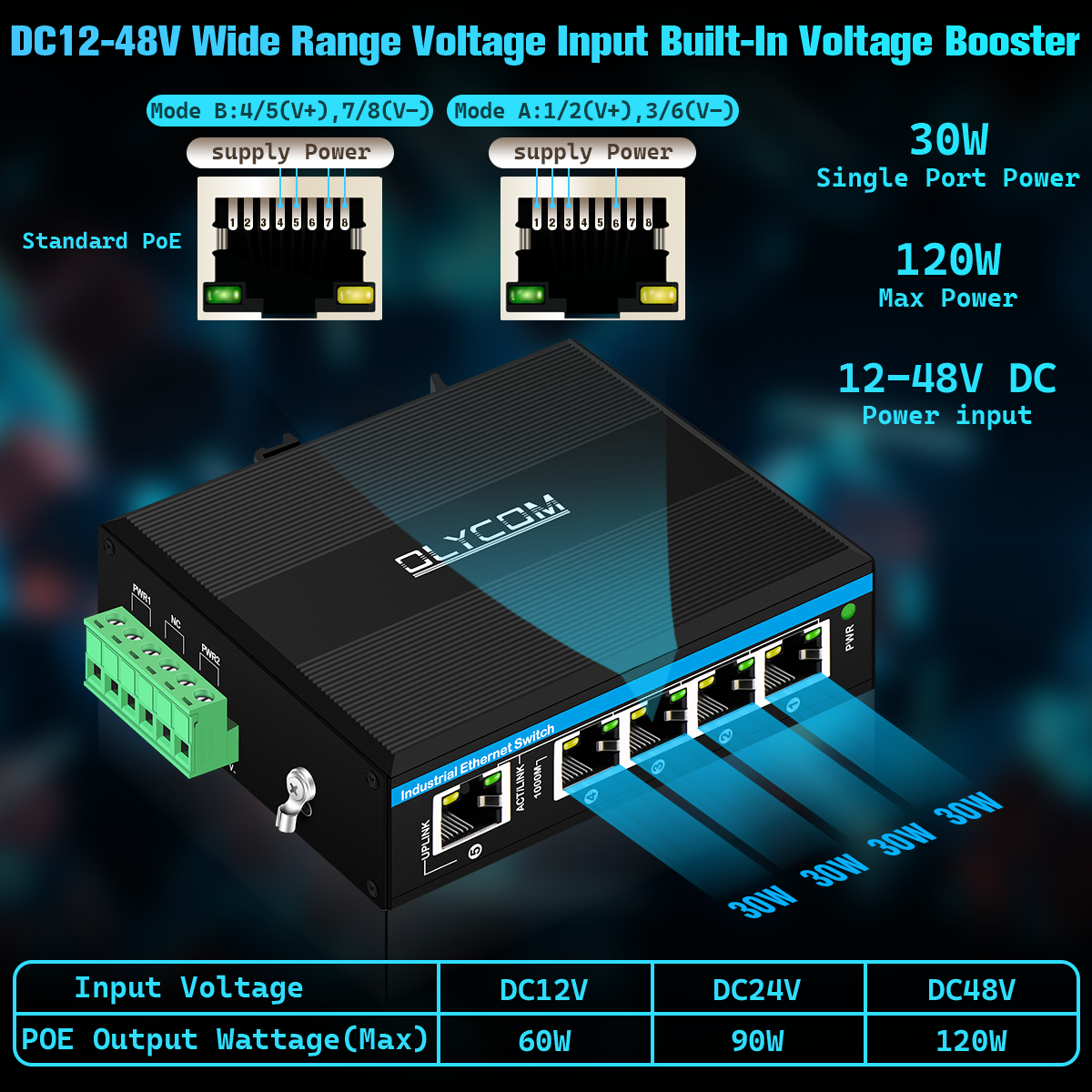

3, Which pin carries PoE?

Pins 1/2,3/6 is for data pairs while Pins 4/5, 7/8 carries PoE output.

4, Can I use a battery to start your device?

Yes, as long as the voltage stands in DC12V~DC48V and the power Pins are properly connected.

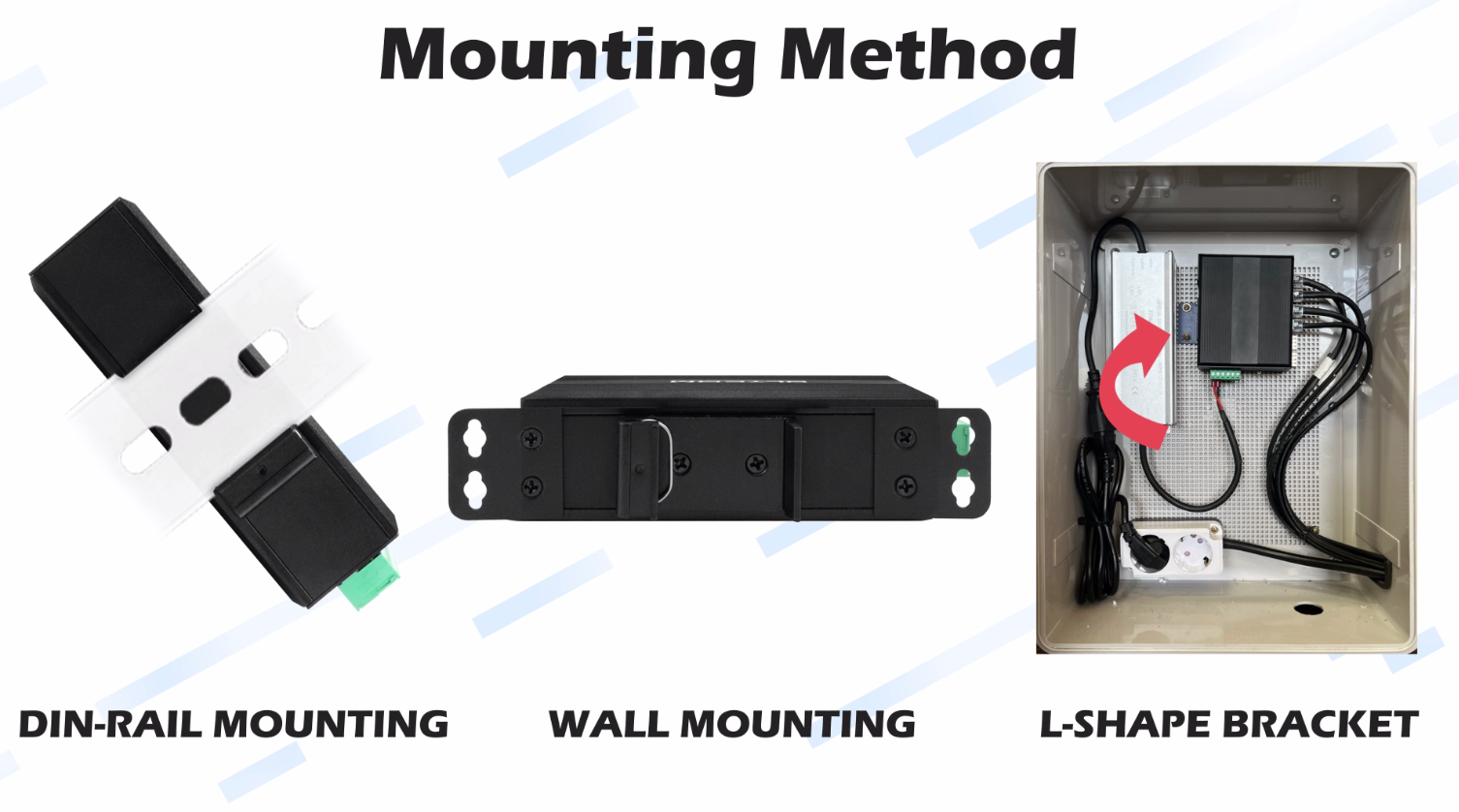

Mounting Method



If you are interested in the two models, welcome to know more about the details.
