Project Background: Growing Demand for Reliable Industrial Network Infrastructure

With the continuous development of smart transportation systems and intelligent security monitoring, network infrastructure needs to support a large number of IP cameras, wireless access points, and industrial communication devices.

Traditional commercial Ethernet switches may face challenges when deployed in outdoor or industrial environments, especially in applications requiring wide temperature operation, centralized network management, and high-bandwidth data transmission.

To address these requirements, an industrial-grade managed PoE fiber switching solution can provide a flexible network architecture for smart transportation, video surveillance, and industrial Ethernet applications.

Application Requirements: Stable Connectivity in Complex Environments

For industrial and outdoor network deployments, customers typically require:

High-Density PoE Device Access

Modern surveillance and transportation systems often include multiple IP cameras and network terminals that require both data communication and power supply.

A suitable network solution needs to simplify field installation while reducing additional power infrastructure requirements.

High-Speed Fiber Backbone Connection

With the increasing use of high-definition video monitoring, network bandwidth requirements continue to grow.

The network infrastructure needs sufficient uplink capacity to transmit large amounts of video and operational data between access points and the control center.

Centralized Network Management

Large-scale deployments require efficient monitoring and configuration capabilities.

Network administrators need to manage devices remotely, monitor operating status, and optimize traffic transmission through VLAN, QoS, and security management functions.

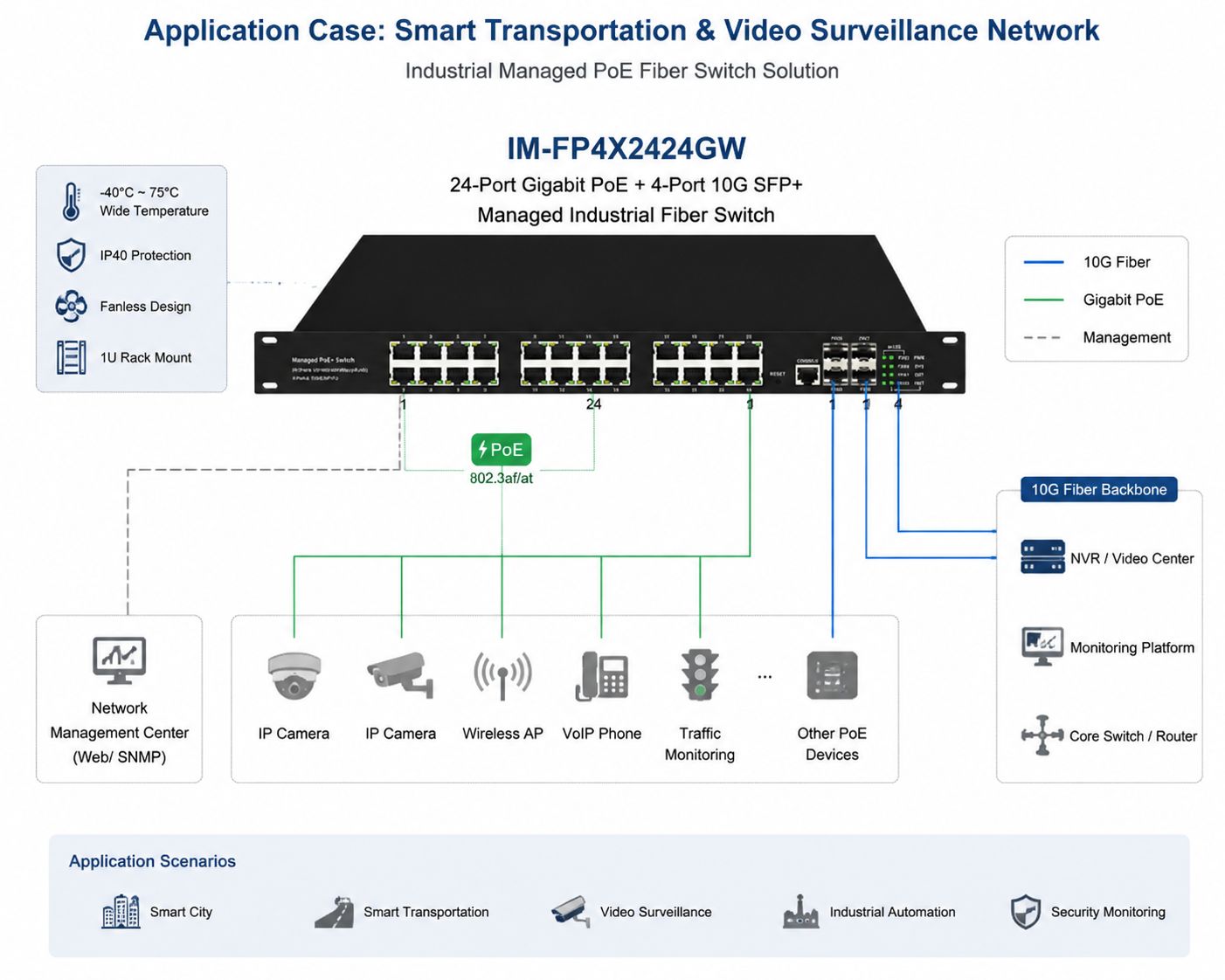

Solution: Managed Industrial PoE Fiber Switch with 10G Uplink

The IM-FP4X2424GW industrial managed PoE fiber switch provides an integrated solution combining Gigabit PoE access, fiber uplink transmission, and advanced network management features.

The switch is equipped with:

• 24 × 10/100/1000Mbps RJ45 ports for Ethernet device connection
• 4 × 10G SFP+ fiber ports for high-speed uplink
• IEEE 802.3af/at PoE support for connected devices
• Layer 3 routing functions for flexible network deployment

These features allow the switch to be used as an access or aggregation device in industrial Ethernet networks.

Key Technologies Applied in the Network

Industrial Design for Harsh Operating Conditions

Industrial network equipment may need to operate under temperature variations and demanding environments.

The IM-FP4X2424GW adopts an industrial-grade design with an aluminum alloy housing, 1U rack-mount structure, and fanless design.

The operating temperature range is from -40°C to 75°C, making it suitable for applications requiring wide temperature support.

Efficient PoE Deployment for Surveillance Systems

For video surveillance applications, PoE technology helps simplify network installation by providing power and data transmission through Ethernet cables.

The switch supports IEEE 802.3af/at PoE standards and provides PoE capability on RJ45 ports for connected devices such as IP cameras and wireless access points.

Typical applications include:

• IP surveillance camera networks
• Smart transportation monitoring systems
• Industrial security networks
• Smart building communication systems

Advanced Network Management and Security

For large-scale industrial networks, effective management is essential.

The switch supports multiple management methods, including WEB, HTTPS, SSH, Telnet, SNMP, CLI, and console management.

It also supports VLAN, QoS, ACL, STP/RSTP/MSTP, and Layer 3 routing functions to help administrators build structured and manageable Ethernet networks.

Application Benefits

Simplified Network Deployment

By integrating PoE power supply and Ethernet communication, the industrial PoE switch reduces the need for separate power equipment at remote device locations.

Flexible Network Expansion

The combination of Gigabit Ethernet access ports and 10G SFP+ fiber uplinks provides flexible connectivity options for different network architectures.

Improved Network Management Efficiency

Layer 2 and Layer 3 management features allow engineers to monitor, configure, and maintain industrial Ethernet networks more efficiently.

Typical Application Scenarios

This industrial managed PoE fiber switch can be applied in:

• Smart transportation systems
• Video surveillance networks
• Industrial automation networks
• Smart city infrastructure
• Security monitoring projects
• Industrial communication systems

The product is designed to support reliable Ethernet connectivity in environments where industrial performance and network management capabilities are required.

Conclusion

As industrial networks continue to evolve toward higher bandwidth and smarter management, industrial managed PoE fiber switches provide an effective solution for connecting field devices, backbone networks, and control systems.

With Gigabit PoE access, 10G fiber uplink capability, Layer 3 management features, and industrial-grade design, the IM-FP4X2424GW provides a flexible networking option for smart transportation, surveillance, and industrial Ethernet applications.
