Growing IP Camera Bandwidth Demands Drive Interest in 2.5G PoE and 10G Fiber Uplinks

Multi-Camera Deployments Create New Bandwidth Considerations

As IP surveillance systems continue to expand, a single network node may need to connect multiple cameras. Network infrastructure must therefore handle not only connectivity for edge devices, but also the aggregation and transmission of data toward upstream networks, NVR systems, or monitoring centers.

In multi-camera environments, bandwidth planning depends on factors such as camera quantity, video bitrate, resolution, and the amount of simultaneous traffic. As more devices connect to the same network node, the suitability of traditional Gigabit access and uplink architectures should be evaluated according to actual project requirements.

For applications with growing bandwidth demands, 2.5G Ethernet access and 10G fiber uplinks are becoming connection options worth considering.

2.5G PoE Combines Higher-Speed Access and Power Delivery

IP camera deployment typically requires both network connectivity and power. For compatible PoE devices, Power over Ethernet enables data transmission and power delivery through the same Ethernet cable, reducing the need for separate power connections at the device location.

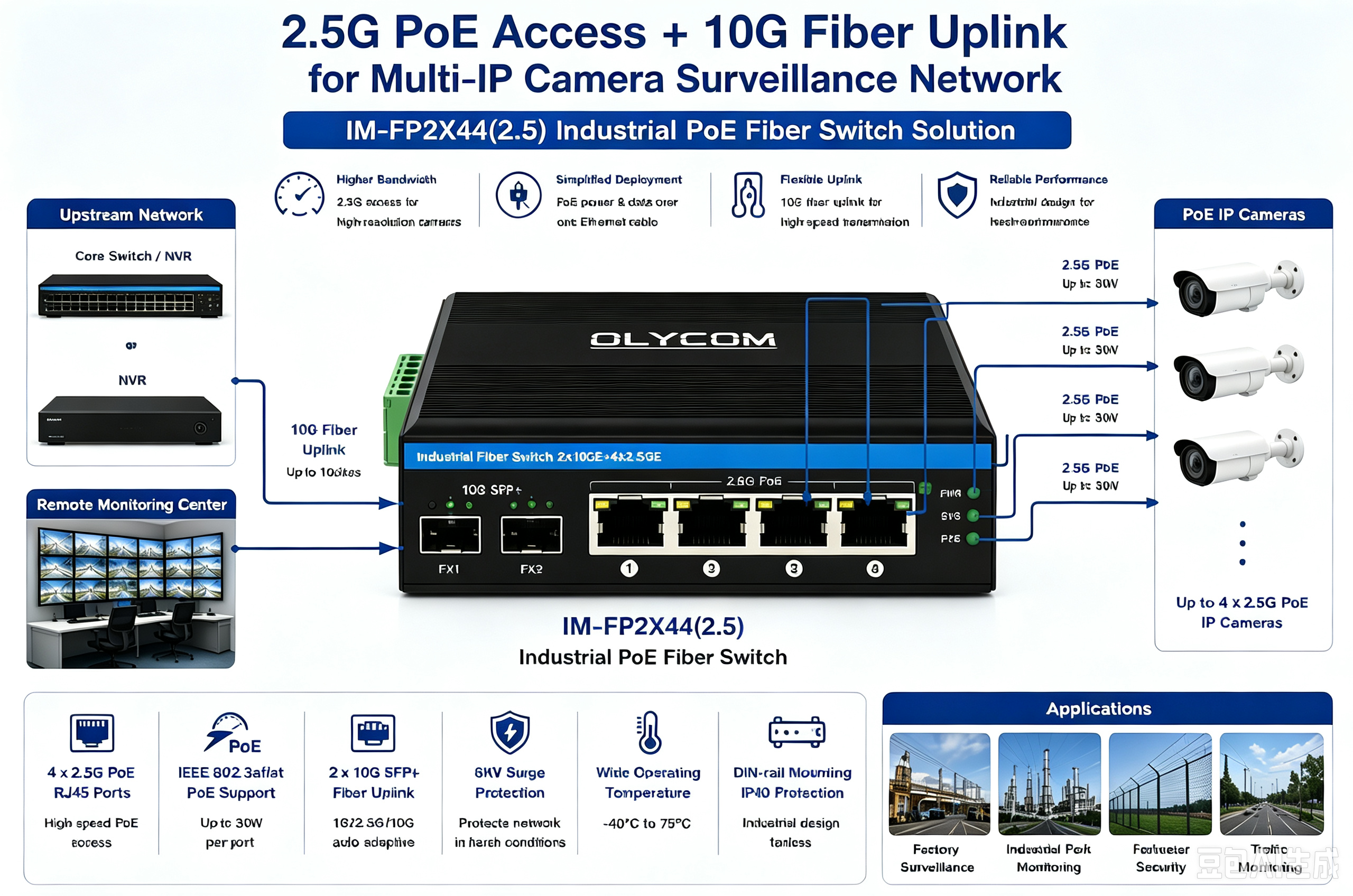

The IM-FP2X44(2.5) industrial PoE fiber switch provides four 10/100/1000/2500Mbps auto-sensing RJ45 ports and supports IEEE 802.3af/at PoE standards.

All four RJ45 ports can be used for PoE device connectivity, with PoE output of up to 30W per port. Compatible IP cameras and other PoE-powered devices can therefore receive network connectivity and power through the same Ethernet cable.

The 2.5G port speed also provides an additional access option for network environments that require higher Ethernet bandwidth, while auto-negotiation supports connectivity with devices operating at different Ethernet speeds.

10G Fiber Uplinks Provide Additional Capacity for Data Aggregation

In multi-camera deployments, traffic from connected edge devices must eventually be transmitted through an uplink toward NVR systems, monitoring centers, or other upstream network infrastructure.

When data from multiple cameras is aggregated onto the same uplink, uplink bandwidth becomes an important part of network planning.

The switch provides two SFP fiber ports with auto-sensing support for 1G, 2.5G, and 10G speeds. Appropriate optical modules and transmission configurations can be selected according to the network architecture and project requirements.

Compared with lower-speed uplink options, a 10G fiber uplink can provide additional bandwidth capacity for network architectures with higher aggregated traffic demands. Whether a 10G uplink is required should still be determined according to factors such as camera quantity, video bitrate, and actual network traffic.

Fiber Connectivity Supports Distributed Surveillance Network Architectures

In industrial parks, manufacturing sites, outdoor perimeters, and other distributed surveillance environments, IP cameras may be located at considerable distances from the monitoring center or upstream network infrastructure.

With SFP fiber interfaces, an industrial PoE switch can connect edge devices to an upstream fiber network. Different optical modules and fiber types can support different transmission requirements, depending on the specific project configuration.

This approach combines PoE connectivity for front-end devices with fiber transmission toward upstream infrastructure, providing an additional deployment option for distributed IP surveillance networks.

Industrial Design for Demanding Deployment Environments

IP surveillance networks are not always installed in standard indoor office environments.

Industrial sites, outdoor cabinets, and other demanding applications may involve changing temperatures and complex electrical conditions. For this reason, operating temperature and environmental suitability are important considerations when selecting network equipment.

The IM-FP2X44(2.5) supports an operating temperature range from -40°C to 75°C and is designed for industrial environments. The switch also provides 6KV Ethernet surge protection and meets relevant industrial EMC requirements.

These specifications make it a network equipment option for applications such as industrial automation, outdoor networking, and industrial video surveillance. Actual deployment should still consider site temperature, cabling methods, grounding conditions, and overall system design.

Key Factors in Multi-IP Camera Network Planning

When planning a multi-camera network, several factors should be considered during equipment selection and network design.

Camera Quantity and Data Traffic

Different quantities and types of IP cameras generate different data transmission requirements. Network planning should account for the total traffic generated when multiple devices operate simultaneously.

Access Port Speed

RJ45 port speeds should match the requirements of connected devices and the overall network. For applications with higher bandwidth demands, 2.5G Ethernet provides an additional access speed option.

PoE Power Requirements

The PoE standard and actual power consumption of connected cameras and other powered devices should be confirmed. Overall power planning should also consider the number of connected devices.

Uplink Bandwidth

Traffic from multiple connected devices is aggregated toward the upstream network. Depending on actual traffic requirements, 1G, 2.5G, or 10G uplink connectivity may be considered.

Operating Environment

Temperature, installation conditions, power supply requirements, and the electrical environment can also influence network equipment selection.

Applications in Industrial and Outdoor IP Surveillance Networks

By combining 2.5G PoE access, fiber uplink connectivity supporting speeds up to 10G, and industrial environmental specifications, this type of industrial PoE fiber switch can be considered for applications such as:

• Industrial park IP surveillance networks
• Factory and automation area monitoring
• Outdoor perimeter security systems
• Distributed IP camera networks
• Data access networks requiring fiber uplinks
• Mixed deployments of IP cameras and other PoE-powered devices

Conclusion

As the number of IP cameras increases and network traffic requirements continue to change, data aggregation from multiple edge devices is becoming an important consideration in surveillance network planning.

For networks that require PoE device connectivity, higher-speed Ethernet access, and fiber uplink capability, 2.5G PoE ports and SFP fiber uplinks supporting speeds up to 10G provide different connectivity options for network design.

In practical projects, network architecture should be planned according to camera quantity, device power consumption, video traffic, transmission distance, and environmental conditions to select network equipment and connectivity solutions that match the actual application requirements.
