Background: Industrial Automation Requires Flexible and Reliable Network Infrastructure

With the development of digital manufacturing and industrial networking, more field devices need to be connected through industrial Ethernet networks, including PLC controllers, industrial computers, sensors, monitoring devices, and remote I/O systems.

However, industrial network deployment often faces several challenges:

• Wide temperature variations in industrial environments;
• Long-distance communication requirements;
• Different communication interfaces such as Ethernet, CAN Bus, and RS485;
• Increasing complexity of network management.

Therefore, modern industrial networks require not only reliable data transmission but also flexible connectivity for different industrial devices.

Application Requirement: Integrating Ethernet and Industrial Communication Devices

In industrial control systems, PLC controllers often communicate with various field devices.

Typical architectures may include:

• Ethernet communication for industrial controllers;
• RS485 interfaces for meters and control modules;
• CAN Bus communication for industrial equipment and vehicle systems.

Using multiple independent communication devices may increase system complexity and maintenance requirements.

An industrial Ethernet switch with integrated CAN Bus and RS485 interfaces provides a more flexible approach for multi-device connectivity.

Solution: Industrial PoE Fiber Switch with CAN Bus and RS485 Integration

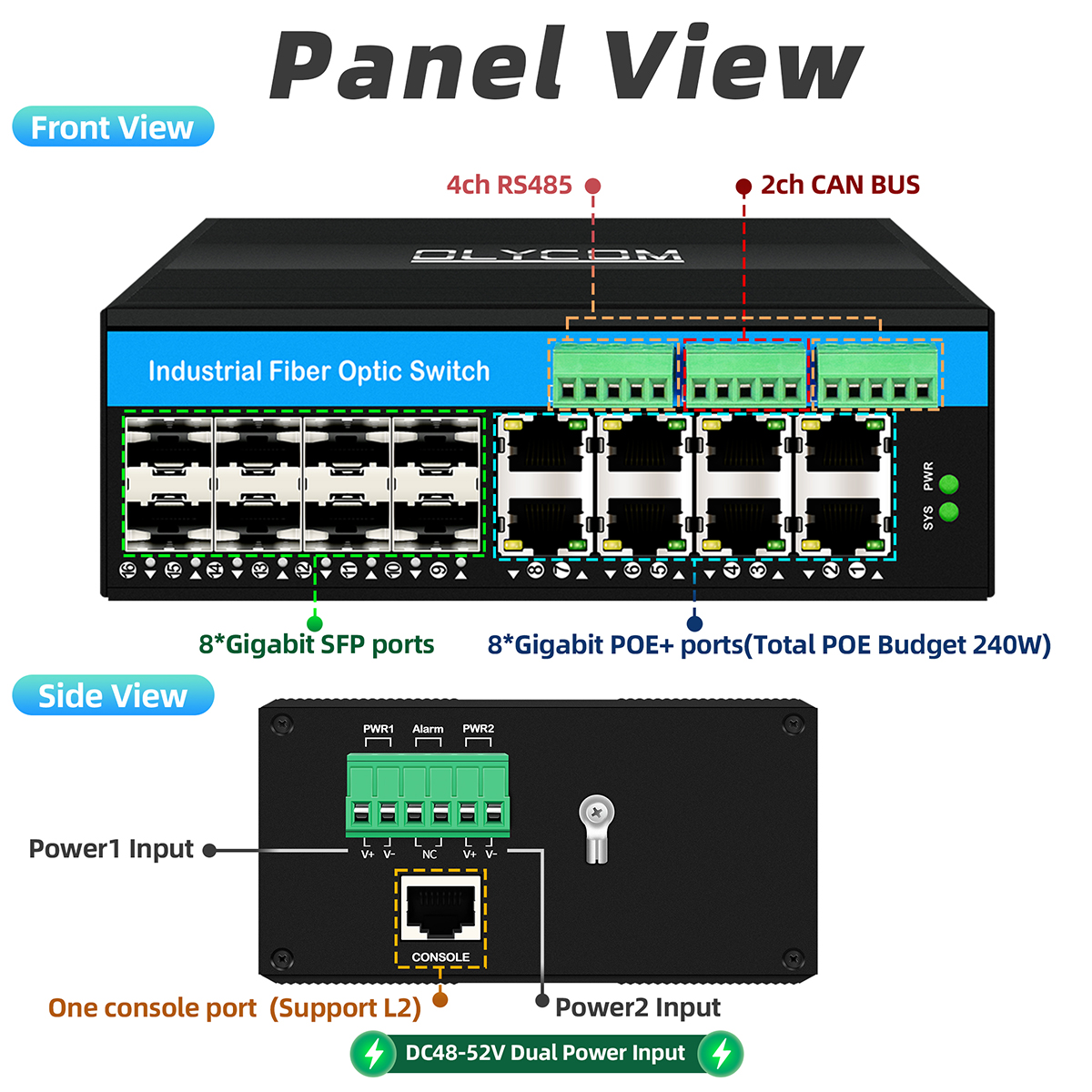

The Olycom IM-FP888GW-2C4D is a managed industrial PoE fiber switch designed for industrial communication applications.

It integrates:

• 8×10/100/1000Mbps RJ45 Ethernet ports;
• 8×1000Mbps SFP fiber ports;
• 2×CAN Bus interfaces;
• 4×RS485 interfaces.

This architecture allows industrial networks to connect Ethernet devices and serial communication equipment within the same infrastructure.

How CAN Bus and RS485 Integration Supports Industrial Applications

CAN Bus Connectivity for Industrial Control Systems

The switch supports:

• ISO 11898-2 High-speed CAN;
• 10Kbps to 1Mbps configurable communication rate;
• CAN 2.0A/B and CAN FD support.

This enables integration with industrial devices that require CAN-based communication.

RS485 Interface for Field Device Networking

Many industrial instruments and control modules still use RS485 communication.

The product supports:

• 4×RS485 interfaces;
• TIA/EIA-485-A standard;
• Up to 115200bps communication rate.

This helps connect traditional serial devices into modern industrial network architectures.

Fiber Connectivity for Long-Distance Industrial Networks

Large factories and industrial sites often require communication over extended distances.

The IM-FP888GW-2C4D provides:

• 8 Gigabit SFP fiber ports;
• Support for single-mode and multimode fiber solutions.

Single-mode fiber options support 20km and 40~120km transmission distances, while multimode fiber supports up to 2km.

Industrial Design for Challenging Environments

Industrial applications require network equipment designed for long-term operation.

The switch features:

• Operating temperature from -40℃ to 75℃;
• Fanless design;
• Metal housing;
• DIN-Rail mounting.

It also supports 6KV Ethernet surge protection for industrial deployment environments.

Managed Network Features for Industrial Maintenance

The Layer 2+ managed switch supports:

• VLAN;
• STP/RSTP/MSTP;
• ERPS Ring;
• QoS;
• LACP;
• ACL;
• Web, CLI, and SNMP management.

These features allow engineers to configure and maintain industrial networks according to different application requirements.

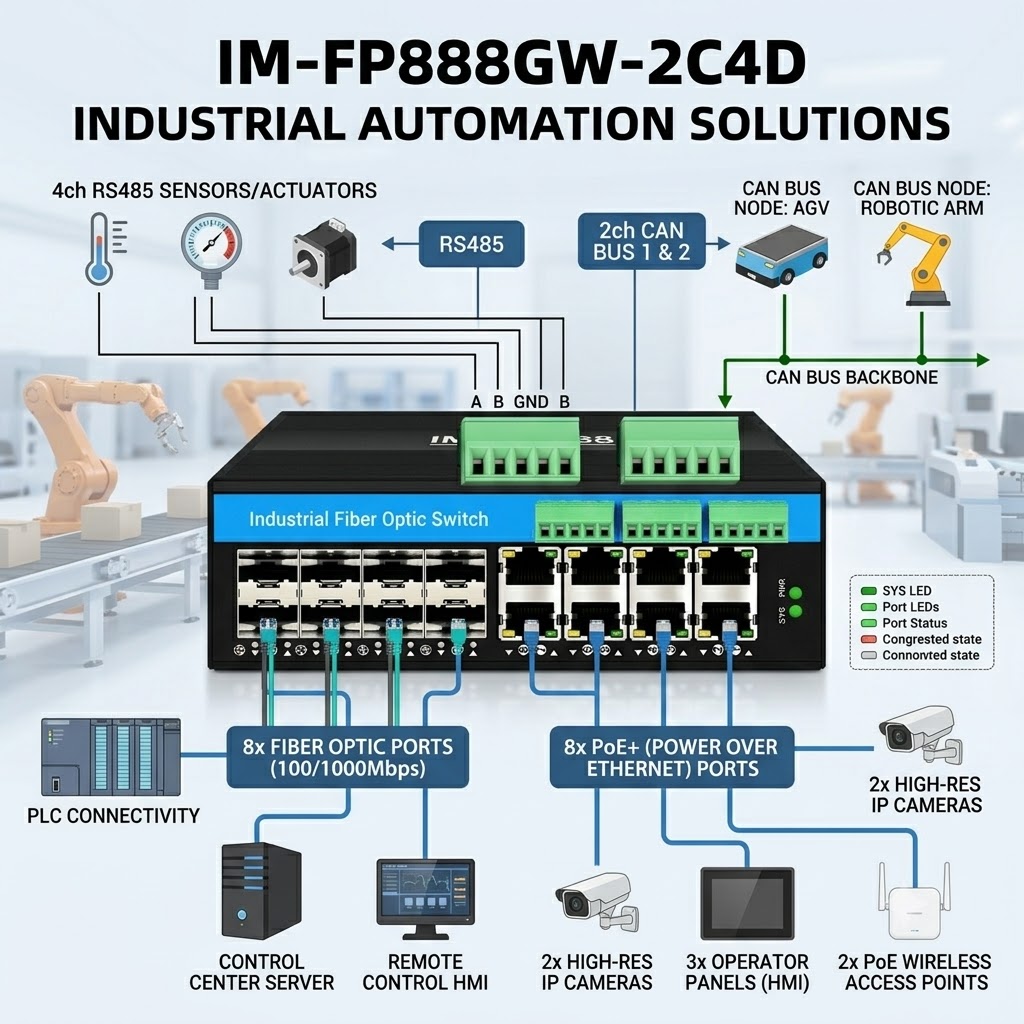

Typical Applications

Industrial Automation

Connecting PLC systems, industrial equipment, and field communication devices.

Smart Manufacturing

Integrating Ethernet-based equipment with traditional industrial communication interfaces.

Intelligent Transportation Systems

Supporting industrial network nodes and communication devices.

Industrial Surveillance Systems

Connecting PoE-powered IP cameras and network devices.

Conclusion

As industrial automation systems become more connected, integrating different communication interfaces and maintaining reliable network infrastructure have become important considerations.

With Gigabit Ethernet, fiber connectivity, CAN Bus, and RS485 integration, the IM-FP888GW-2C4D provides a flexible industrial communication solution for complex field environments.

Its Layer 2+ management capability, wide temperature design, and industrial protection features make it suitable for industrial automation and communication network applications.
