90W Industrial Managed POE Switch

author: Olycom

2024-08-16

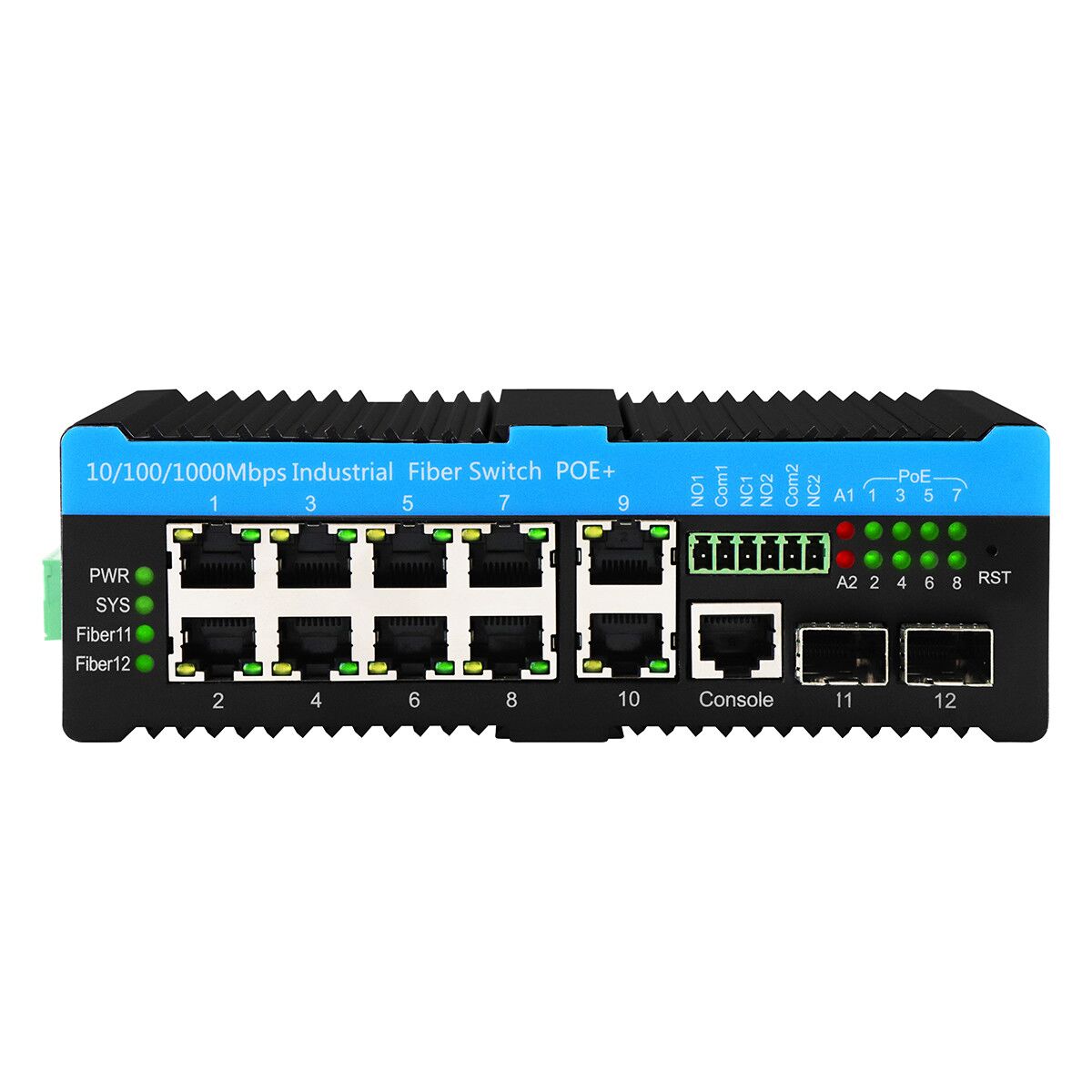

IM-FP21008GW is Gigabit Managed 10-port,L2 Gigabit Ethernet 90W PoE Ring Switch.IM-FP21008GW provides IEEE802.3af/at/bt compliant up to 90W PoE power on 8 copper ports for total power of 720W ,This enables it to provide power for the most demanding PoE applications for PTz domes,LED lighting and wireless products. It is compliant to G.8032 ERPS V1/V2 Ring protocol. The IM-FP21008GW is uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis, 6KV surge protection and user programmable port thermal protection of over temperature shut down to prevent damage to the IM-FP21008GW from excessive heat.

Olycom's 90W industrial-grade PoE switch supports a variety of transmission rates, including 10/100/1000Mbps and 2.5 Gbps, meeting the needs of high-bandwidth applications for fast and reliable connections. In addition, this product boasts industrial-grade wide temperature characteristics, ensuring maximum functionality even in the harshest environments.boasts industrial-grade wide temperature characteristics, ensuring maximum functionality even in the harshest environments.

This 90W industrial-grade PoE switch is also equipped with a relay alarm function, providing a convenient and cost-effective power supply and networking solution for PoE++ devices in industrial environments, ensuring their stable and efficient operation.

Key Features:

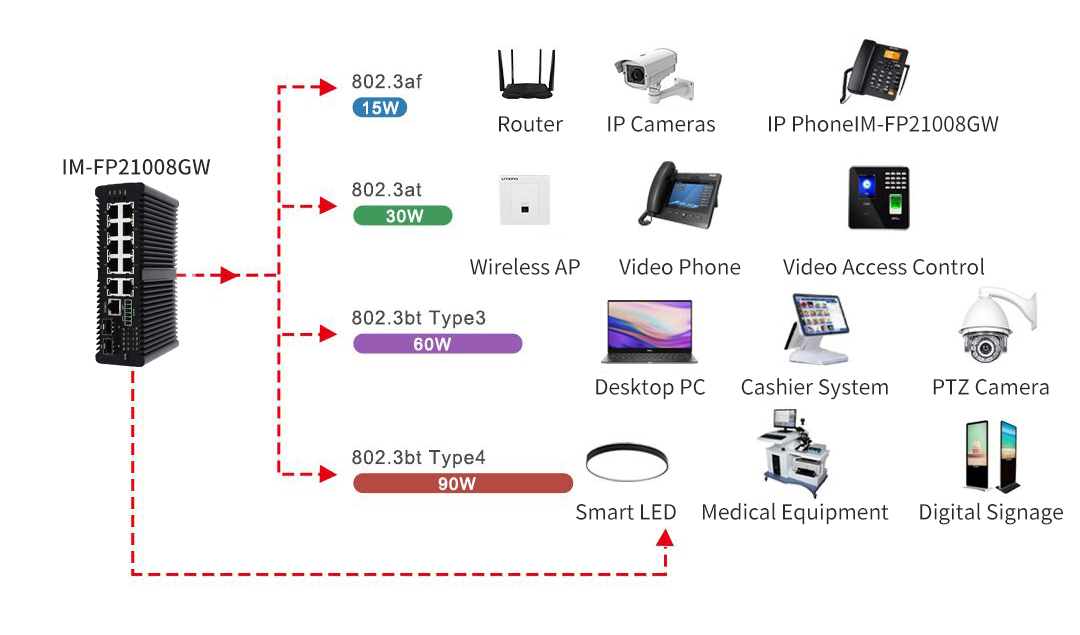

Compatible with IEEE 802.3af/at/bt standards

The Olycom 90W industrial-grade PoE switch boasts two 10/100/1000/2.5G Base-T RJ-45 ports, providing reliable support for PoE while adhering to IEEE 802.3af/at/bt standards. With a maximum output power of 90W per PoE port, this switch delivers ample power to terminal devices.

Support 2.5Gbps network

The product is equipped with a 2.5G BASE-T RJ-45 port, which can provide network speeds of up to 2.5Gbps through existing cables, meeting the needs of high-speed Internet access, such as desktop all-in-ones, billboards, WiFi 6 APs, etc.

Support wide voltage input

It supports wide voltage input (12V~57V DC). You can select power supplies with varying specifications that best suit your specific requirements.

Flexible networking, easy to expand

When utilizing a PoE power supply in isolation, it is able to supply power and facilitate data transmission for the powered device via a network cable.

By utilizing a PoE repeater, the transmission distance of your PoE network can effectively be extended beyond the typical 100-meter limit.

When paired with a PoE splitter, it can facilitate data transmission and deliver DC power to non-PoE devices, effectively addressing the challenge of providing reliable power

and networking without having to replace existing network equipment, leading to substantial cost savings.

Support relay alarm function

The product is equipped with a 2-pin relay terminal to support port link abnormality alarm

Easy to install, plug and play

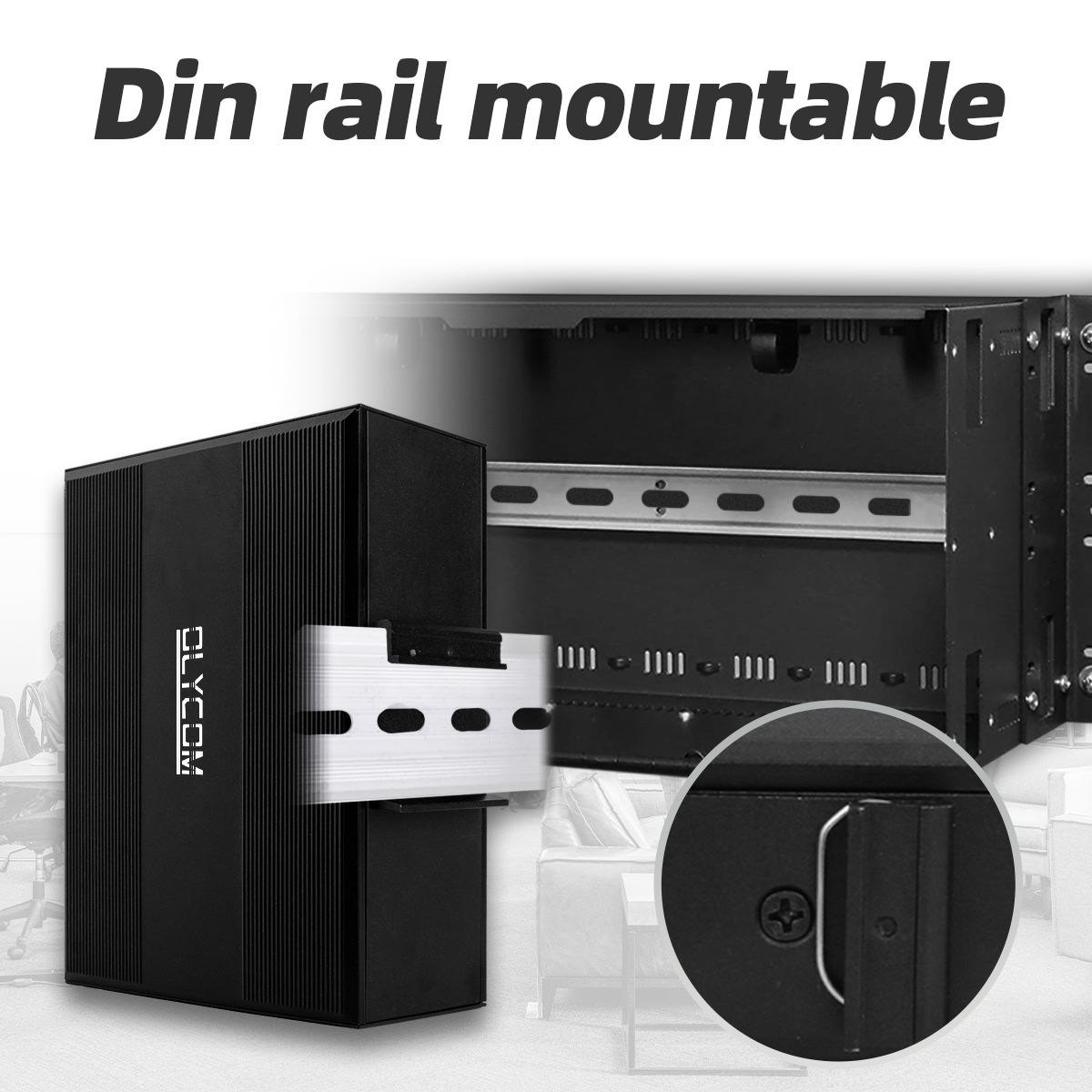

The product is easily installed onto DIN rails and does not require any software configuration, making it a convenient plug-and-play solution. All that is required is to connect the existing switch or Ethernet network to the RJ-45 port and utilize a standard Cat5e/6/6a cable to link the PoE device to the PoE port of the power supply. Additionally, an LED indicators included to assist users in making the appropriate settings.

Industrial-grade protection, adaptable to complex environments

The product features a durable metal shell design and is capable of operating within a wide temperature range of -40~75℃, making it ideal for installation and usage in various rugged outdoor environments.

Support L2 management function

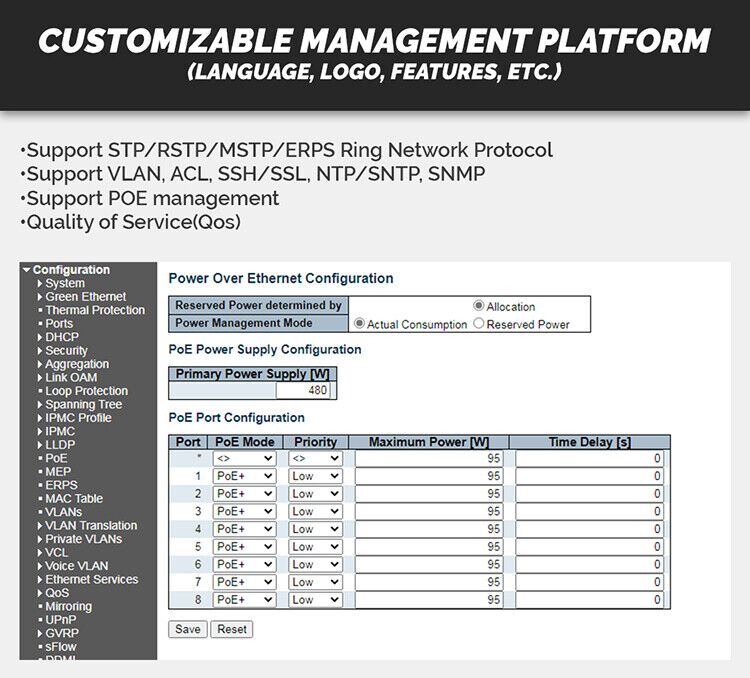

The switch has rich L2 management functions, such as 802.1Q VLAN, QoS, SNMP, STP, RSTP, MSTP, ERPS, PoE management, etc. The switch can be easily managed through the WEB management system (http/https), CLI (telnet/ssh/console), SNMP. It can be widely used in lighting, security monitoring, enterprise park and other projects.
