4 port Industiral Gigabit POE Extender

IM-WPD054GE is an industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The IM-WPD054GE can obtain a maximum of 30-watt PoE power from 802.3at PoE++ input port and supplies a maximum of 120-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m Cat. 5/5e/6 UTP cable to 100m where up to 4 powered devices (PDs) can be powered at the same time. The IM-WPD054GE provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Key Features

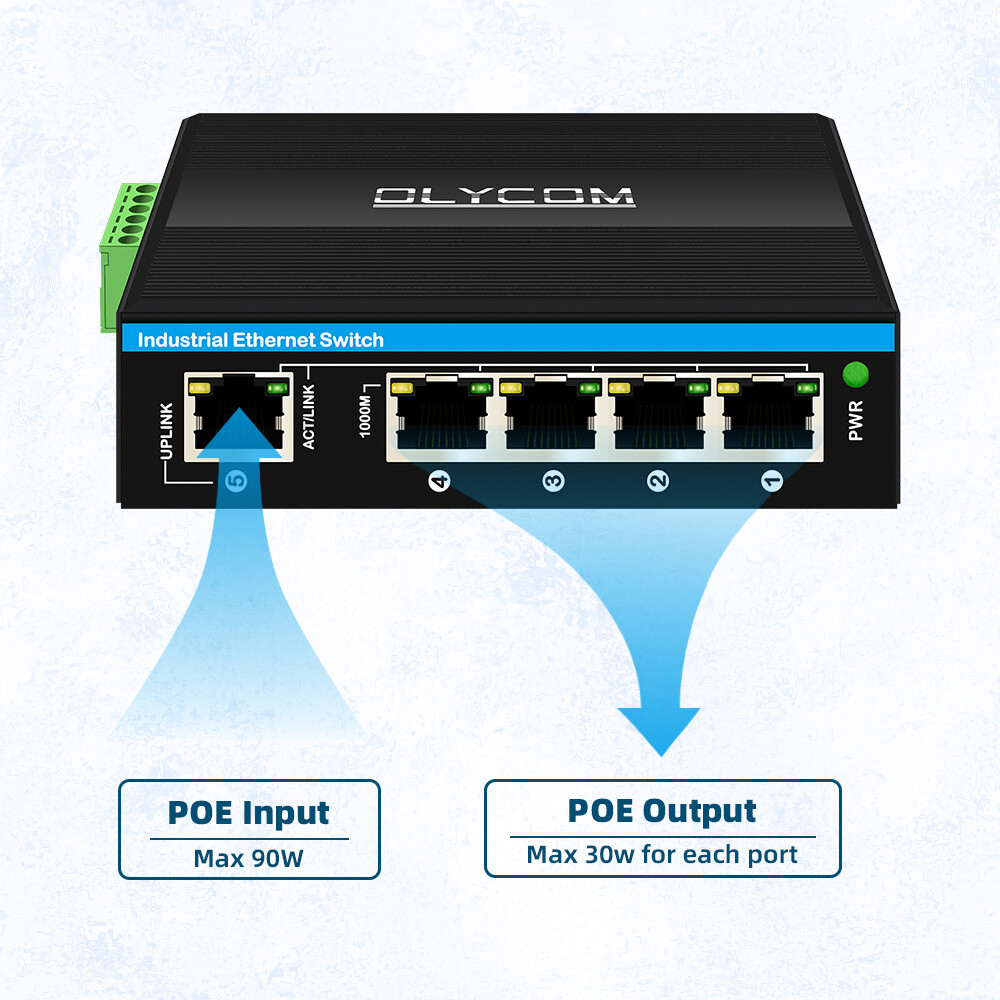

• Port 5: support 30W/60W/90W varied input
• Port 1~4: auto-sensing PoE af/at output, DC48V output
• 5*10/100/1000M auto-sensing ports, seamless connection with 10/100M or Gigabit devices
• 6KV Ethernet surge protection, PoE distance 100 meters
• Unmanaged, Plug and Play, Din Mounted, Full LED indicators

Packing List

• 1pc Switch
• 1pc User Manual

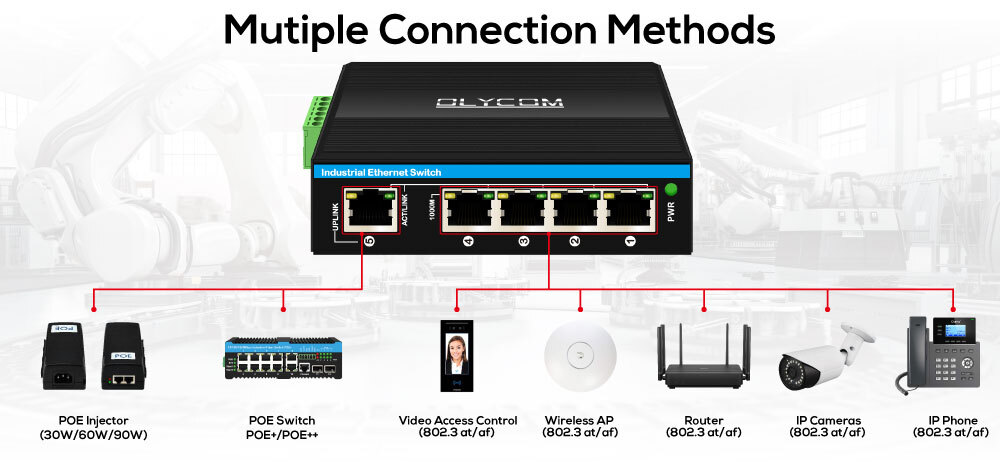

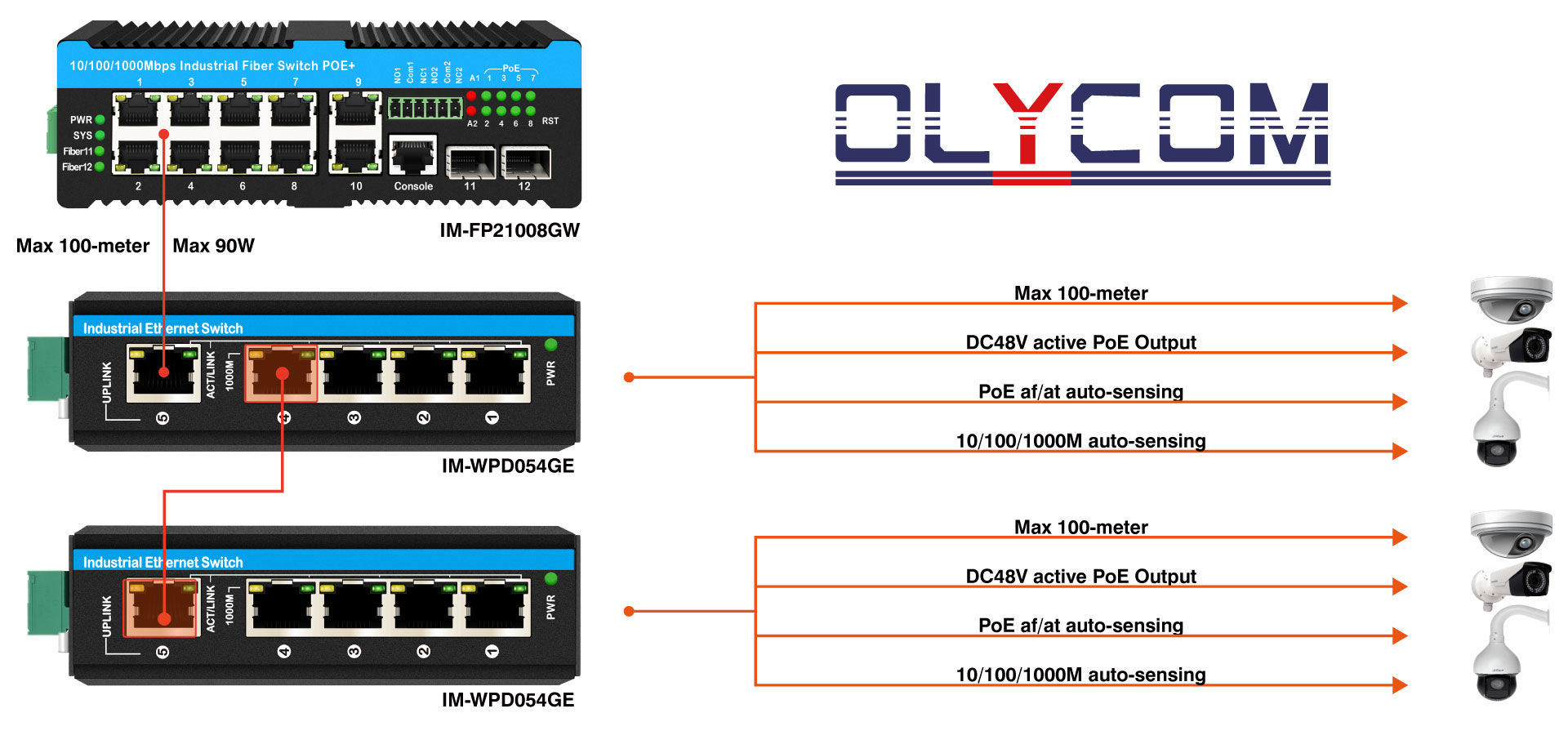

Note: Please know that this device does NOT need an external power supply. It receives power from another PoE switch or PoE injector(see following applications)

LED Indicators

Power

On: power status is normal

Off: power off or connection failure

Port 1~5

Green on: Link is normal

Green off: Link off or connection failure

Yellow on: working speed is 1000Mbps

Yellow off: disconnected or working speed is 10/100Mbps

FAQ:

1. What is the PoE Pin Assignment?

A: Port 1~4: 1/2 (V+), 3/6(V-);  Port 5: 1/2 (V+), 3/6 (V-), 30W input;  1/2 (V+), 3/6 (V-), 4/5 (V+),7/8 (V-), 60W/90Winput

2. Can your PoE extender work with switches from other brands?

A: Yes. All 5 ports can be connected with other switches for IP communication.

3. What is the PoE distance?

A: 100-meter.

4. What is the PoE voltage output?

A: Its output is standard 802.3af/802.3at, DC48V output.It is not supporting DC24V passive output.

5. Is it managed?

A: No, it is unmanaged. Plug-and-play, without extra settings.

6. Can it work with 10/100Mbps devices?

A: Yes, all Ethernet ports speed is auto-adaptive, it is seamless connection with extra settings.

7. Can I use it with one Non-PoE devices?

A:Yes. If one Non-PoE devices is connected with this PoE extender, there will ONLY be IP communication, withoutPoE output.
